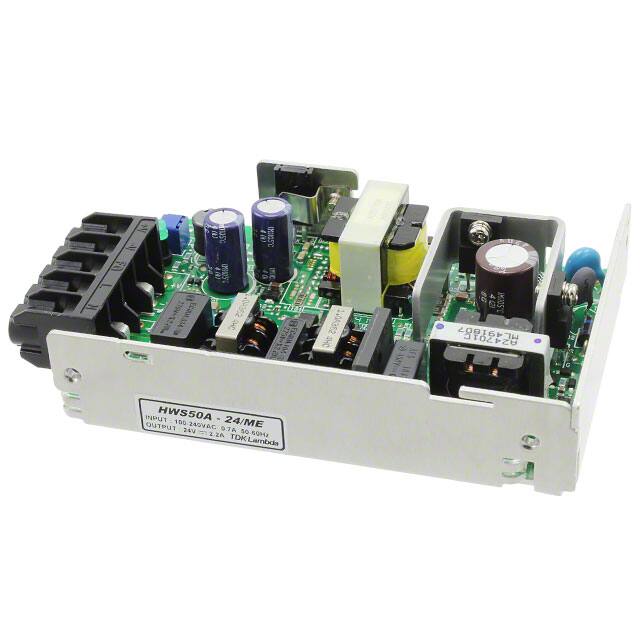

The TDK Corporation HWS50A-24/ME is an open-frame AC/DC converter designed for commercial and medical applications. It delivers a 24V output with a power rating of 50W and a current of 2.2A.
This converter features adjustable output, DC input capability, Power Factor Correction (PFC), and universal input. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. The dimensions are 120.0mm x 82.0mm x 31.5mm.
Key electrical specifications include an efficiency of 87% and an isolation voltage of 3kV. The unit is approved by CE and has one output.
Compliance includes RoHS3 compliance and an MSL rating of 1. It is suitable for ITE (Commercial) and Medical applications.
The output is 24V at 2.2A, providing 50W of power.
The efficiency is 87%.
The operating temperature range is -10°C to 70°C with derating.
The isolation voltage is 3 kV.
The converter is chassis mount and open frame.
It is suitable for ITE (commercial) and medical applications.
It is CE approved.
