| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Indicator | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

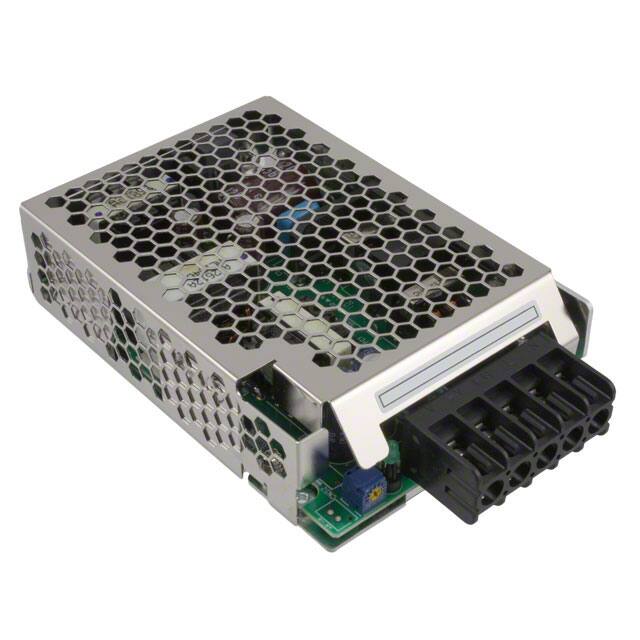

The TDK Corporation HWS50-12/A is an enclosed AC/DC converter designed for industrial applications. It provides a 12V output voltage with a maximum current of 4.3A, delivering a total power of 50W.
This converter operates with a universal input voltage range of 85-265VAC and boasts a high efficiency of 83%. Key features include adjustable output, DC input capability, and a chassis mount type for easy integration into systems.
The operating temperature range is -10°C to 70°C with derating, and it is built to withstand various environmental conditions. Safety certifications include CE approval, making it suitable for ITE (Commercial) applications.
The output voltage is 12V.
The maximum output current is 4.3A.
The input voltage range is 85-265VAC.
The power rating is 50W.
The operating temperature range is -10°C to 70°C, with derating from 50°C to 70°C.
It is a chassis mount type.
The RoHS status is RoHS3 Compliant.
