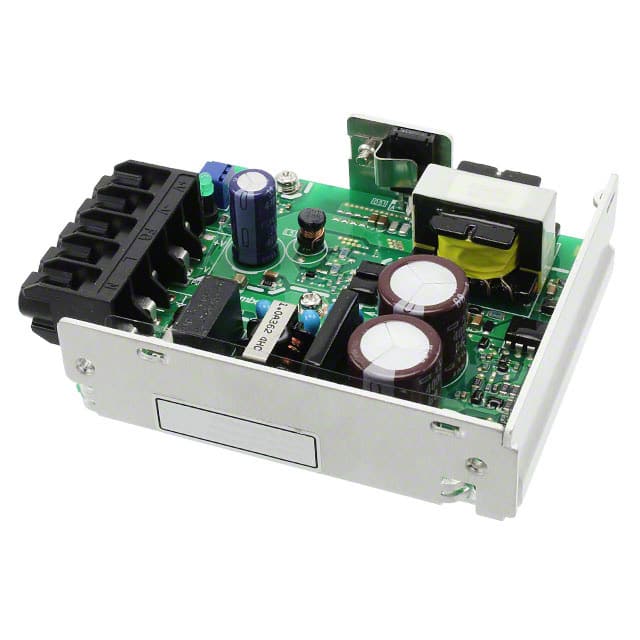

The TDK Corporation HWS30A-12/HD is an AC/DC converter with a power rating of 30W and an output voltage of 12V. This unit features an open frame design with conformal coating and is designed for chassis mounting.
Key electrical specifications include a current output of 2.5A, an efficiency of 86%, and an isolation voltage of 3kV. It offers features such as adjustable output, DC input capability, and universal input. The operating temperature range is -40°C to 70°C with derating.
This converter is suitable for ITE (Commercial) applications and carries CE approval. Its dimensions are 95.0mm in length, 31.5mm in width, and 82.0mm in height. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
12V output with a rated current of 2.5A (30W total).
-40°C to 70°C with derating.
86% typical.
3 kV isolation voltage.
95.0mm length x 31.5mm width x 82.0mm height.
Chassis mount.
Yes, adjustable output is a featured capability.
