| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

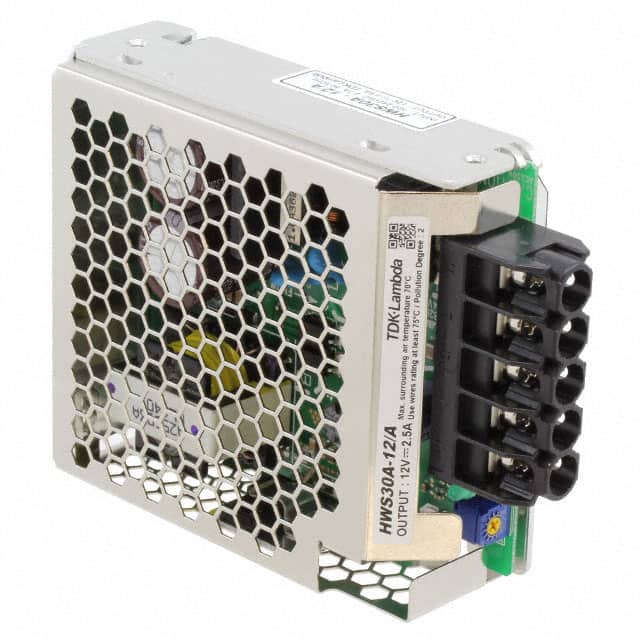

The TDK Corporation HWS30A-12/A is an enclosed AC/DC power supply converter rated for 30W of output power. It provides a 12V output and can deliver up to 2.5A of current. Key features include adjustable output and universal input capabilities, making it versatile for various applications. This unit is designed for chassis mounting.
The converter operates with an efficiency of 86% and has an isolation voltage of 3 kV. Its dimensions are 95.0mm in length, 31.5mm in width, and 82.0mm in height. The operating temperature range is -10°C to 70°C, with derating applied at higher temperatures. It is suitable for Industrial and ITE (Commercial) applications and carries CE approval.
This model is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
The output voltage is 12V DC.
The power rating is 30W.
The operating temperature range is -10°C to 70°C with derating.
The mounting type is chassis mount.
The dimensions are 95.0mm (length) x 31.5mm (width) x 82.0mm (height).
The efficiency is 86%.
