| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

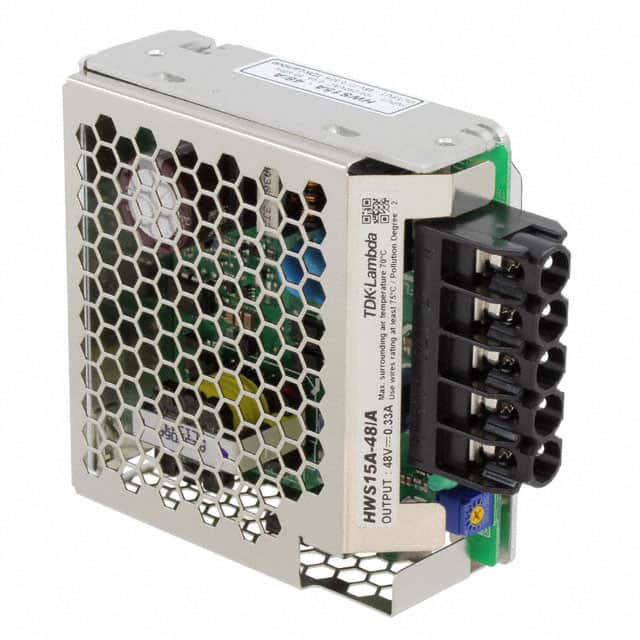

The TDK Corporation HWS15A-48/A is an enclosed AC/DC power converter designed for industrial and ITE (Commercial) applications. It provides a power output of 15W and operates with an efficiency of 80%. This model features an adjustable output and a universal input, making it versatile for various power needs.
The converter is designed for chassis mounting, offering a secure and stable installation. Its dimensions are 80.0mm in length, 31.5mm in width, and 82.0mm in height. The operating temperature range is from -10°C to 70°C, with derating applied. It has a single output and provides 3 kV of voltage isolation.
Key electrical specifications include a current rating of 330 mA and a power rating of 15W. The unit is CE approved, indicating compliance with European safety standards. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. REACH status is reported as REACH Unaffected.
15W.
80%.
-10°C to 70°C with derating.
3 kV.
Enclosed.
Chassis Mount.
80.0mm x 31.5mm x 82.0mm (3.15" x 1.24" x 3.23").
