| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

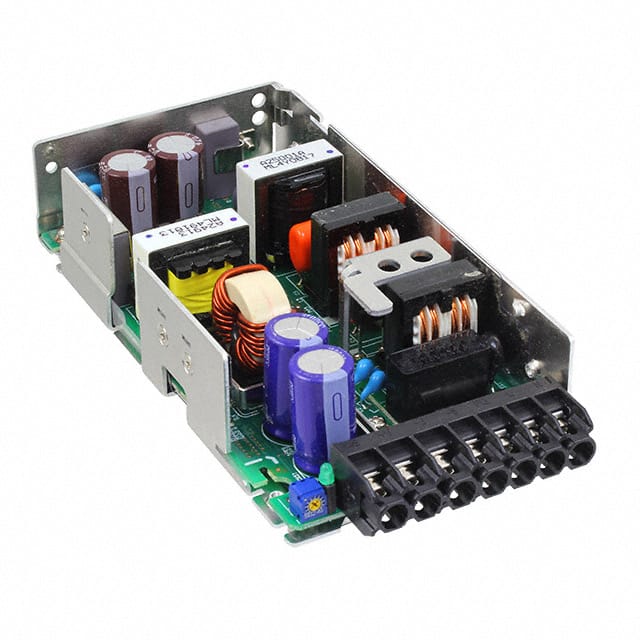

The TDK Corporation HWS150A-5/HD is a versatile AC/DC converter designed for ITE (Commercial) applications. It delivers 150W of power with a 5V output and a maximum current of 30A. This unit features an open frame construction with conformal coating for added protection.
Key electrical specifications include a universal input, adjustable output, and Power Factor Correction (PFC). The converter operates efficiently at 87% and provides an isolation voltage of 3 kV. Its dimensions are 160.0mm in length, 82.0mm in width, and 37.0mm in height.
The operating temperature range is -10°C to 71°C with derating. Mounting is facilitated via a chassis mount type. The HWS150A-5/HD is designed for reliable performance in demanding environments.
The output is 5V at 30A.
150W.
87%.
-10°C to 71°C with derating.
3 kV.
Adjustable output, Power Factor Correction (PFC), universal input, and conformal coating.
CE approved.
Open frame with conformal coating and chassis mount.
