| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

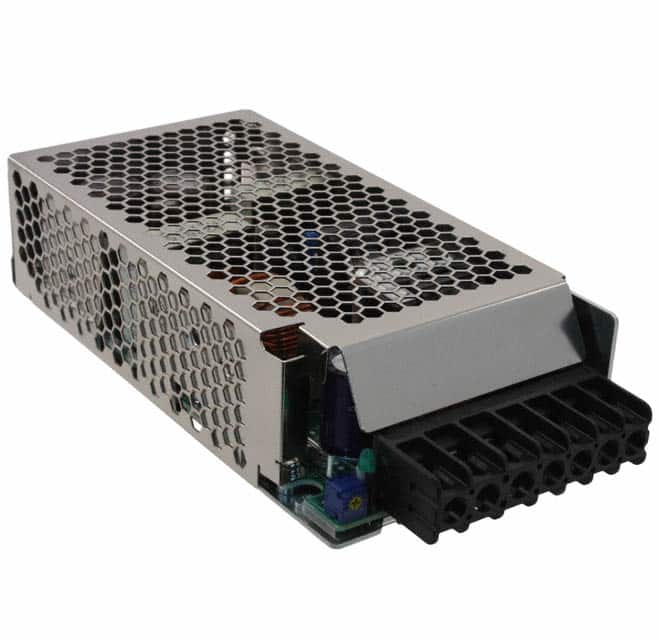

The TDK Corporation HWS150A-15/A is an enclosed AC/DC power supply converter designed for industrial and ITE commercial applications. It provides a power output of 150W and a current of 10A.
Key electrical specifications include 86% efficiency and universal input capability. The converter offers features such as adjustable output and remote sense. It is designed for chassis mounting and has dimensions of 160.0mm x 41.9mm x 82.0mm.
Operating temperature ranges from -10°C to 70°C with derating. The unit has an insulation voltage rating of 3 kV and is CE approved. It is suitable for applications requiring reliable power conversion in demanding environments.
The HWS150A-15/A has a power output of 150W.
The current rating for the HWS150A-15/A is 10 A.
The operating temperature range is -10°C to 70°C (With Derating).
This converter uses chassis mount.
This converter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
