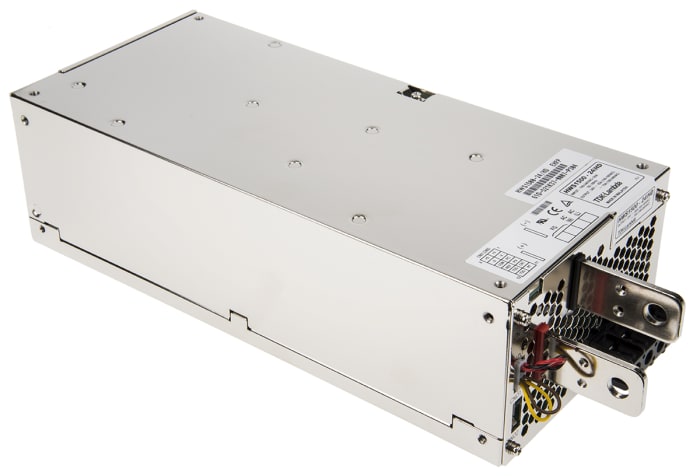

The TDK-Lambda HWS1500-24/HD is a high-power AC to DC embedded switch mode power supply designed for demanding applications. It delivers a stable 24V dc output at a maximum current of 70A, providing a total power of 1500W.
This power supply offers a wide universal input voltage range, accepting 85V ac to 265V ac and 120V dc to 330V dc, ensuring compatibility in various electrical environments. With an efficiency rating of 88%, it minimizes energy waste and heat generation.
The HWS1500 series is built for reliability in harsh conditions, featuring adjustable output voltage (±20%), overvoltage and overcurrent protection, and conformal coating. It conforms to SEMI F47 requirements, making it suitable for semiconductor manufacturing equipment. The unit is designed for easy installation with screw terminals and a chassis mount type, fitting into rack configurations.
Key applications include factory automation, test and measurement equipment, and automated service systems. It meets various industry standards and approvals, including CE, UL, and CSA certifications.
The HWS1500-24/HD has a nominal output voltage of 24V dc.
The maximum output current for the HWS1500-24/HD is 70A.
The power rating of the HWS1500-24/HD is 1500W.
The input voltage range is 85V ac to 370V dc, and 85V ac to 265V ac.
The efficiency of the HWS1500-24/HD is 88%.
The operating temperature range is -10°C to 71°C.
Yes, the output voltage is adjustable by ±20%.
