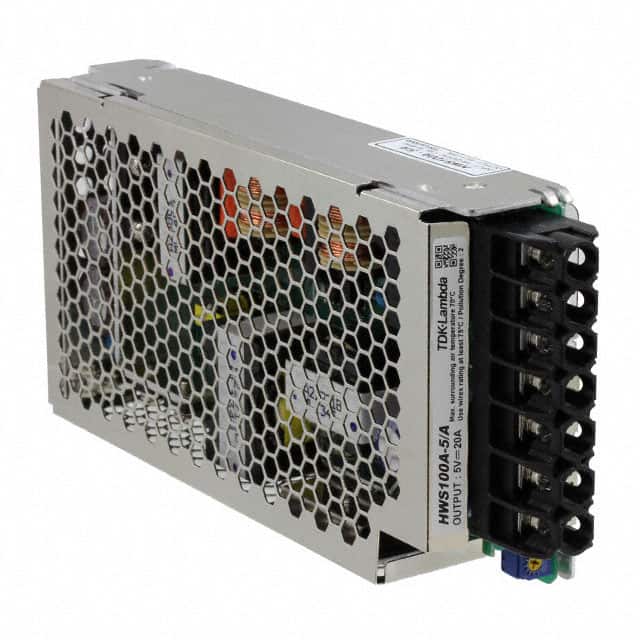

The TDK Corporation HWS100A-5/HD is an open-frame, conformal-coated AC/DC converter designed for ITE (Commercial) applications. It provides a single 5V output with a maximum current of 20A, delivering up to 100W of power.
Key electrical specifications include an input voltage range of 85 to 265 VAC, with an efficiency rating of 86%. The unit features adjustable output, PFC, and universal input capabilities. It offers a 3 kV isolation voltage and operates within a temperature range of -10°C to 71°C with derating.
Mechanically, the converter is designed for chassis mounting and has dimensions of 160.0mm x 82.0mm x 28.0mm. It meets CE approval standards. The product is RoHS3 Compliant, REACH Unaffected, and has an MSL of 1 Unlimited.
This series is suitable for industrial control equipment and offers easier system EMC compliance due to Class B conducted and radiated EMI performance.
85 ~ 265 VAC (also 120 ~ 370 VDC).
Open frame with conformal coating, chassis mount, bulk packaging.
-10°C to 71°C with derating.
5V DC.
20A.
86%.
3 kV.
160.0mm x 82.0mm x 28.0mm (6.30" x 3.23" x 1.10").
