| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

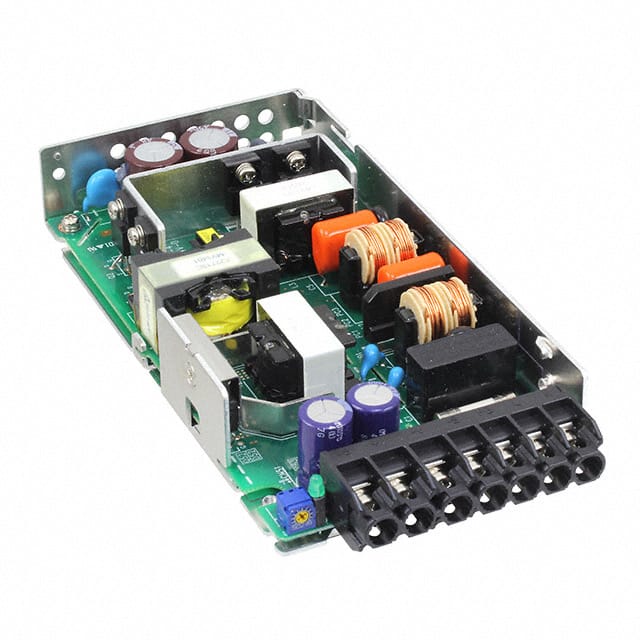

The TDK Corporation HWS100A-12/HD is an industrial AC-DC power supply from the HWS-A series, delivering 102W of power with a 12V output voltage and 8.5A current. This open-frame, conformal-coated unit is designed for chassis mounting and features adjustable output, power factor correction (PFC), and a universal input voltage range of 85 to 265Vac.
With an efficiency rating of 88%, the HWS100A-12/HD operates reliably within a temperature range of -10°C to 71°C (with derating). It meets Class B conducted and radiated emissions standards without additional filtering, simplifying system EMC compliance. The power supply is certified to UL 508 and IEC 62368-1 standards, making it suitable for industrial control equipment and ITE commercial applications.
The dimensions are 160.0mm x 82.0mm x 28.0mm. It also boasts a limited lifetime warranty and conservative electrolytic capacitor ratings, contributing to a long service life and low cost of ownership.
The output voltage is 12V.
The maximum output current is 8.5A.
The power rating is 102W.
The operating temperature range is -10°C to 71°C with derating.
The input voltage range is 85 to 265Vac.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
