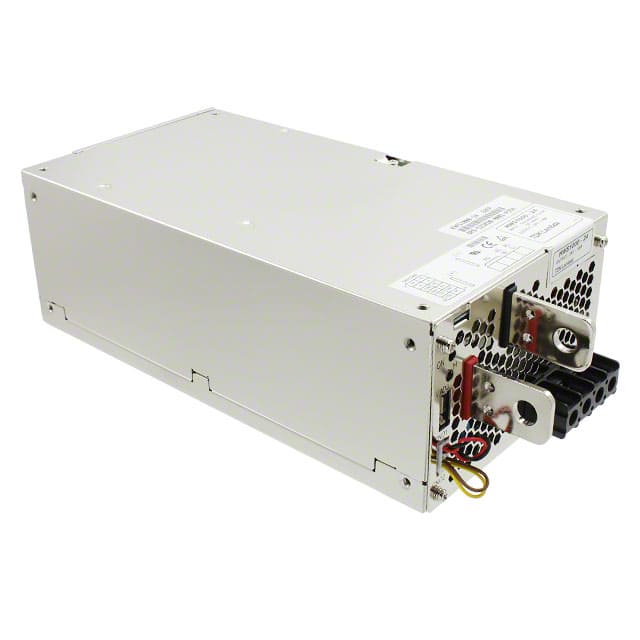

The TDK Corporation HWS1000-48 is a 1000W AC/DC power supply designed for industrial applications. It features a wide input voltage range of 85 to 265Vac, making it suitable for universal use. The converter provides a stable 48V output voltage with a nominal current of 28A and an efficiency of 88% at 115/230Vac.
Key features include adjustable output, DC input capability, load sharing, remote on/off, and remote sense functionality. The unit is designed for chassis mounting and has dimensions of 240.0mm x 127.0mm x 82.6mm. It operates within a temperature range of -10°C to 70°C with derating.
This series is certified to IEC 62368-1 and UL 508 (select models), and is SEMI F47 compliant. It also meets Class B conducted and radiated EMI standards without additional filtering, simplifying system EMC compliance. The HWS1000-48 is suitable for ITE (Commercial) applications.
85 to 265Vac.
Chassis mount, enclosed.
-10°C to +70°C with derating.
48V at 28A, 1000W total.
Yes, remote on/off is a listed feature.
3 kV input to output.
Yes, it is SEMI F47 compliant.
