| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

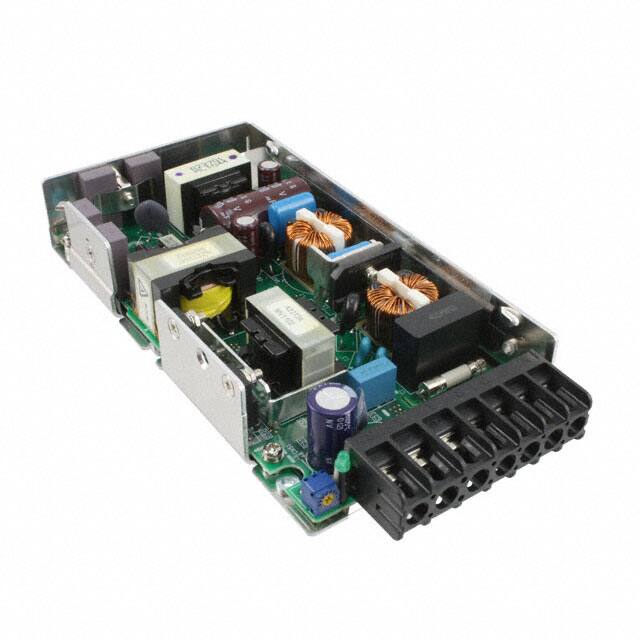

The TDK Corporation HWS100-3/HD is a single-output AC/DC power supply with an open frame type and chassis mount. It delivers 100W of power with an output voltage of 3.3V and a maximum current of 20A. The unit operates with an efficiency of 81% and accepts a wide input voltage range of 85 to 265Vac.
Key electrical specifications include line regulation of 20mV and load regulation of 120mV. The overvoltage protection is rated between 4.13V and 4.95V. The operating temperature range is -40°C to 71°C with derating.
This power supply series is designed for industrial applications and meets Class B conducted and radiated emissions standards. It also features adjustable output, DC input capability, remote sense, and universal input. The dimensions are 160.0mm in length, 28.0mm in width, and 82.0mm in height.
The output voltage is 3.3V.
The output current is 20A.
The input voltage range is 85-265Vac.
The operating temperature range is -40°C to 71°C with derating.
The efficiency is 81%.
The mounting type is chassis mount.
The dimensions are 160.0mm x 28.0mm x 82.0mm.
