| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

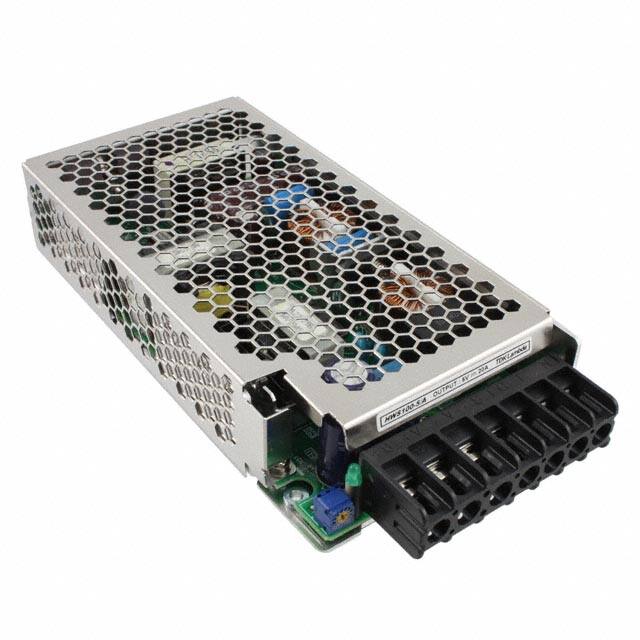

The TDK Corporation HWS100-3/A is an enclosed AC DC converter designed for industrial applications. It provides a single output of 3.3V at up to 20A, delivering a total power of 100W.
Key electrical specifications include a universal input voltage range of 85-265VAC, an efficiency of 81%, and features such as adjustable output, DC input capability, remote sense, and overcurrent protection. The operating temperature range is -10°C to 70°C with derating.
This converter is designed for chassis mounting and has dimensions of 160.0mm x 33.0mm x 82.0mm. It meets various safety and compliance standards including CE, UL508, and SEMI F47.
Applications include ITE (Commercial) equipment requiring reliable power conversion.
85-265 VAC or 120-370 VDC.
3.3V at 20A, 100W.
-10°C to 70°C with derating.
Enclosed chassis mount package.
81% typical.
UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark.
EN55011/EN55022-B, FCC-B, VCCI-B.
