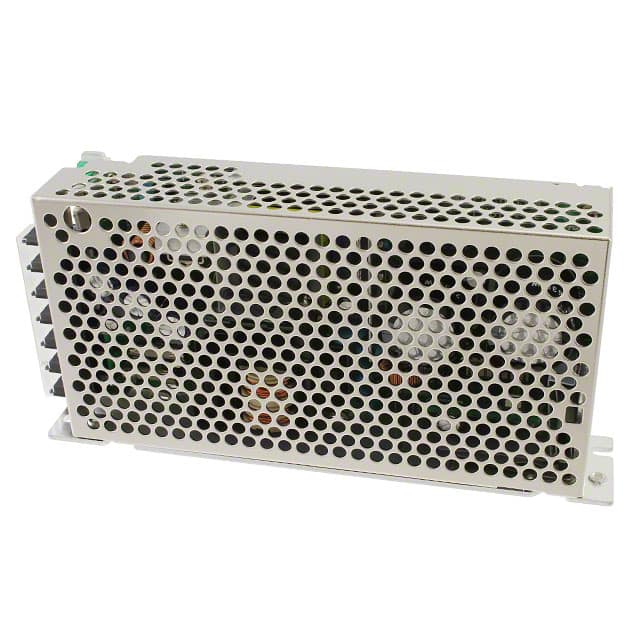

The Sanken HWB060S-24-M-C is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers a 60W output power with a nominal voltage of 24V and a maximum output current of 3.5A.
This converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 85%. Key features include load sharing capability and a chassis mount type for easy integration into systems. The operating temperature range is from -10°C to 60°C.
With dimensions of 170.0mm x 92.0mm x 39.0mm, the HWB060S-24-M-C is suitable for various industrial and commercial applications requiring reliable power conversion. It has received approvals from CE, cURus, and GS.
The output voltage is 24V.
The maximum output current is 3.5A.
The power rating is 60W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 60°C.
The dimensions are 170.0mm x 92.0mm x 39.0mm.
It has CE, cURus, and GS approvals.
