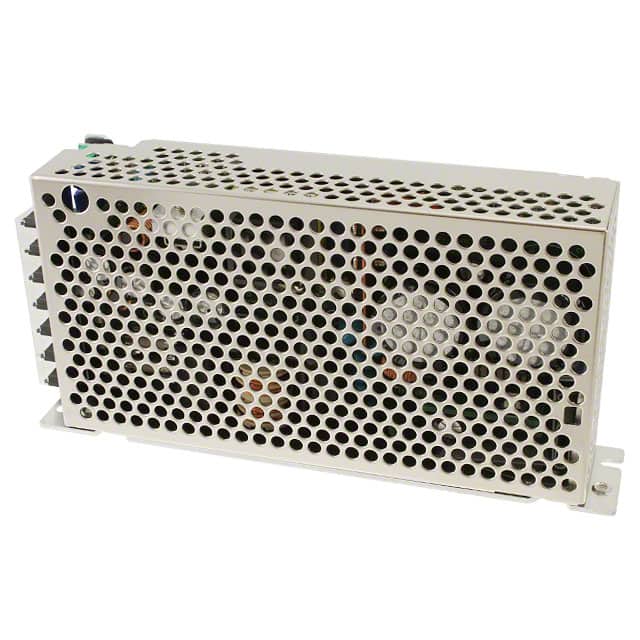

This Sanken HWB060S-12-C is an enclosed AC/DC power supply converter designed for commercial ITE applications. It provides a 60W output power with a single 12V output voltage and a maximum current of 5.2A.
The converter features a universal input voltage range of 85 to 264 VAC, making it suitable for global use. Key features include load sharing and universal input capabilities. The operating temperature range is from -10°C to 60°C.
Designed for chassis mounting, this unit has dimensions of 170.0mm in length, 92.0mm in width, and 39.0mm in height. It boasts an efficiency of 80% and carries approvals from CE, cURus, and GS.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are based on unverified data.
The output power is 60W.
The output voltage is 12V.
The input voltage range is 85 ~ 264 VAC.
The operating temperature range is -10°C to 60°C.
The dimensions are 170.0mm x 92.0mm x 39.0mm.
It uses chassis mount.
