| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

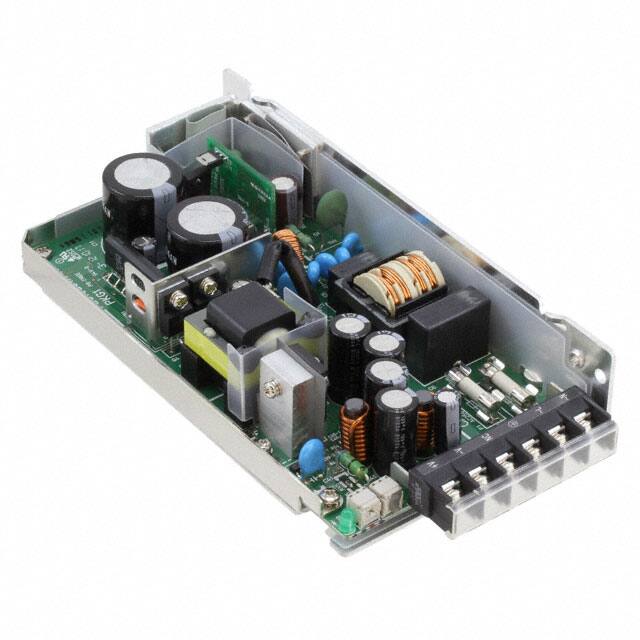

The Sanken HWB060S-05 is an AC/DC converter designed for various applications, including ITE (Commercial) and Medical. This open frame unit delivers a stable 5V output with a maximum current of 10A, providing a total power of 60W.
Key electrical specifications include a wide input voltage range of 85 to 264 VAC and an efficiency of 75%. The converter supports features like load sharing and universal input, making it versatile for different power systems. It operates within a temperature range of -10°C to 60°C.
Mechanically, the HWB060S-05 has dimensions of 170.0mm x 92.0mm x 38.0mm and is designed for chassis mounting. It has one output and carries approvals from CE, cURus, and TUVgs, ensuring compliance with safety standards.
This model is RoHS3 Compliant, REACH Unaffected, and has an MSL rating of 1, indicating suitability for a wide range of manufacturing environments.
The input voltage range is 85 to 264 VAC.
The output is 5 VDC at up to 10 A.
The operating temperature range is -10°C to 60°C.
The efficiency is 75%.
It is approved to CE, cURus, and GS standards.
It is an open frame package for chassis mount.
