| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

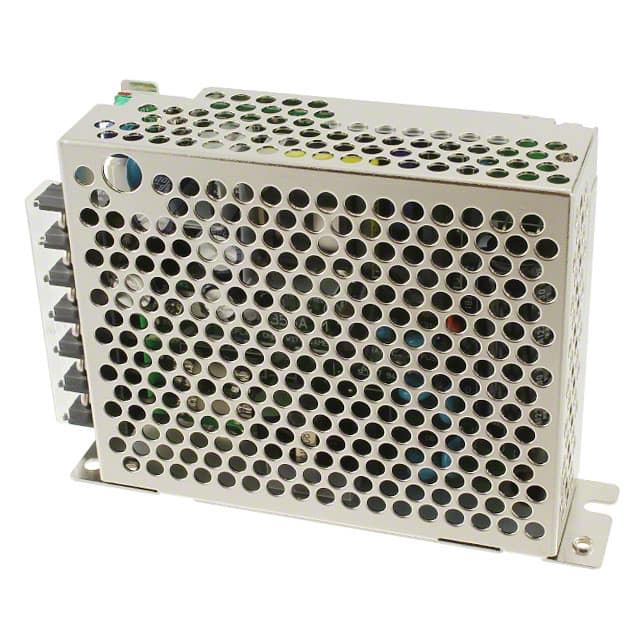

The Sanken HWB030S-05-C is a 30W AC/DC converter designed for ITE (Commercial) applications. It features a 5V output with a maximum current of 6A, delivering a total power of 30W. The converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 75%.
Key features include load sharing capabilities and a universal input, making it versatile for various power supply needs. The unit is enclosed and designed for chassis mounting, with dimensions of 136.0mm x 92.0mm x 35.0mm. It operates within an ambient temperature range of -10°C to 60°C. Approvals include CE, cURus, and TUVgs, indicating compliance with international safety standards.
The output voltage is 5V and the output current is 6A, providing 30W of power.
85 to 264 VAC.
-10°C to 60°C.
Enclosed package with chassis mount.
CE, cURus, and GS.
75%.
Load sharing and universal input.
