HWB015S-15-R-C
Sanken
The Sanken HWB015S-15-R-C is an enclosed AC/DC converter with a 15W power rating and a 15V output. It features universal input voltage from 85 to 264 VAC.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

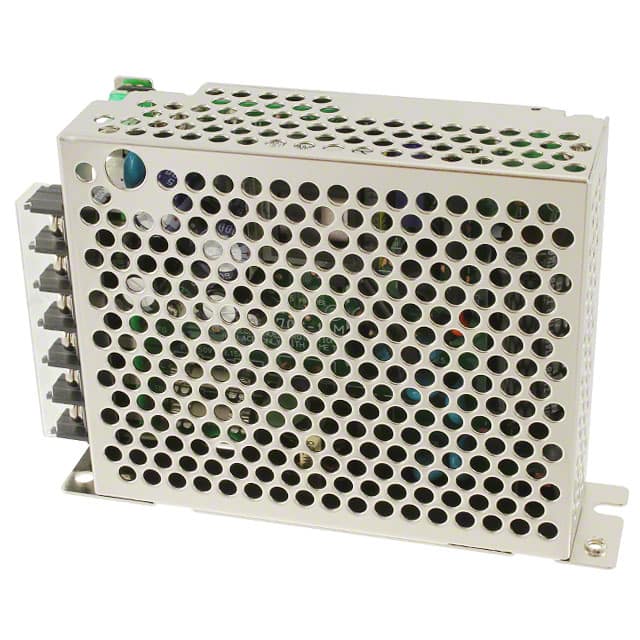

The Sanken HWB015S-15-C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85 to 264 VAC and delivers a maximum output power of 15W with a current of 1.3A.
This converter features load sharing and a universal input, making it versatile for various power supply needs. It is designed for chassis mounting, offering a secure and stable installation. The dimensions are 110.0mm in length, 92.0mm in width, and 35.0mm in height.
Key specifications include an efficiency of 70% and an operating temperature range of -10°C to 60°C. It is approved by CE, cURus, and GS agencies, ensuring compliance with safety standards. The unit has a single output.
85 to 264 VAC.
1.3A.
15W.
70%.
-10°C to 60°C.
Chassis mount, dimensions 110mm x 92mm x 35mm.
CE, cURus, GS.
