| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

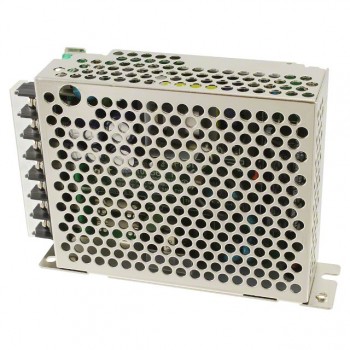

The Sanken HWB015D-15-C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a total power of 15W with dual outputs of +15V and -15V, each capable of supplying up to 650mA.
This converter operates with an input voltage range of 85 to 264 VAC and boasts an efficiency of 75%. Key features include load sharing and a universal input, making it versatile for various power systems. The operating temperature range is from -10°C to 60°C.
Designed for easy integration, the HWB015D-15-C features a chassis mount type. Its dimensions are 4.33" L x 3.62" W x 1.38" H (110.0mm x 92.0mm x 35.0mm). The unit is approved by CE, cURus, and GS agencies, indicating compliance with relevant safety standards.
+15V and -15V
650mA
15W
85 ~ 264 VAC
-10°C ~ 60°C
Chassis Mount
CE, cURus, GS
