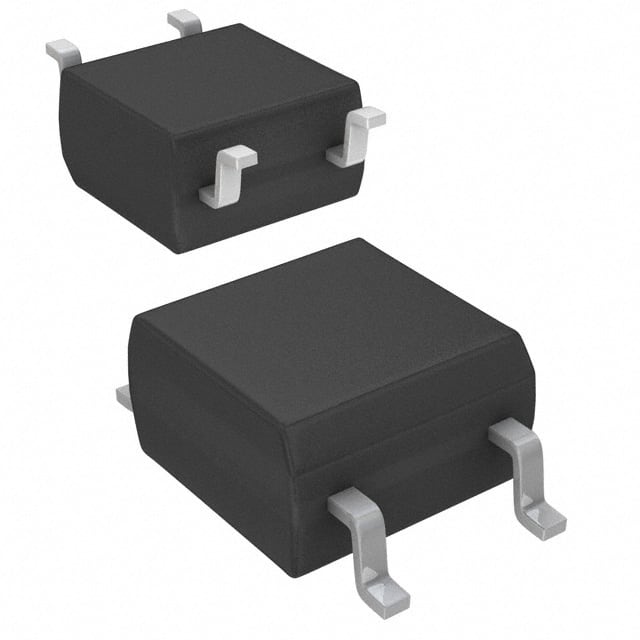

The HW-101A is a Hall Effect sensor from Asahi Kasei Microdevices/AKM with an analog voltage output. It operates with up to 100V DC input voltage and has a wide operating temperature range.

✓ Total Stock: 3,000 pcs

$ Price Range: $1.50

HW-101A Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HW-101A Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Asahi Kasei Microdevices/AKM
Input Voltage	100V DC
Mounting Type	Surface Mount
Operating Temperature	-40°C to 110°C
Storage Temperature	-40°C to 125°C
Supply Current	20mA
Tape & Reel	Tape & Reel

View Similar Products (0)

HW-101A Description

Short technical summary and product information.

The HW-101A is a Hall Effect sensor manufactured by Asahi Kasei Microdevices/AKM, designed for applications requiring magnetic field detection. It features an analog voltage output and supports a maximum input voltage of 100V DC.

The sensor operates within an ambient temperature range of -40°C to 110°C. Its input resistance is specified between 240Ω and 550Ω. The output voltage varies depending on the magnetic flux density and drive conditions, with specific ranges provided for different ranks under constant voltage drive.

Packaged in a 4-SMD Module, the HW-101A is designed for surface mounting. It is supplied in reels of 3,000 pieces. The device is RoHS3 Compliant, MSL Level 1, and REACH Unaffected, indicating adherence to environmental standards.

This Hall Effect sensor is suitable for various industrial and electronic applications where precise magnetic sensing is required. Its robust operating temperature range and reliable output characteristics make it a versatile component for embedded systems and control applications.

HW-101A Quick Information

Product Type: Hall Effect Sensor

Series: HW-101A

Canonical Name: HW-101A Hall Effect Sensor

Subcategory: Magnetic Sensors

HW-101A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HW-101A Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HW-101A Features

Analog voltage output Hall Effect sensor.
Wide operating temperature range: -40°C to 110°C.
High input voltage rating of 100V DC.
Surface mount 4-SOP package.
Supplied in Tape & Reel, 3,000 pcs/reel.

HW-101A Applications

Magnetic field detection applications.
Industrial control systems.
Position sensing.
Embedded systems.

HW-101A FAQs

5 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the HW-101A?

The operating temperature range for the HW-101A is -40°C to 110°C.

What is the maximum input voltage for the HW-101A?

The maximum input voltage for the HW-101A is 100V DC.

What is the input resistance of the HW-101A?

The input resistance of the HW-101A ranges from 240Ω to 550Ω.

What are the output voltage specifications for the HW-101A?

Under constant voltage drive (B=50mT, Vc=1V), the output voltage ranges are: Rank A: 168mV to 204mV, Rank B: 196mV to 236mV, Rank C: 228mV to 274mV, Rank D: 266mV to 320mV, Rank E: 310mV to 370mV.

How is the HW-101A packaged?

The HW-101A is packaged in a 4-SMD Module for surface mounting and is supplied on Tape & Reel with 3,000 pieces per reel.
