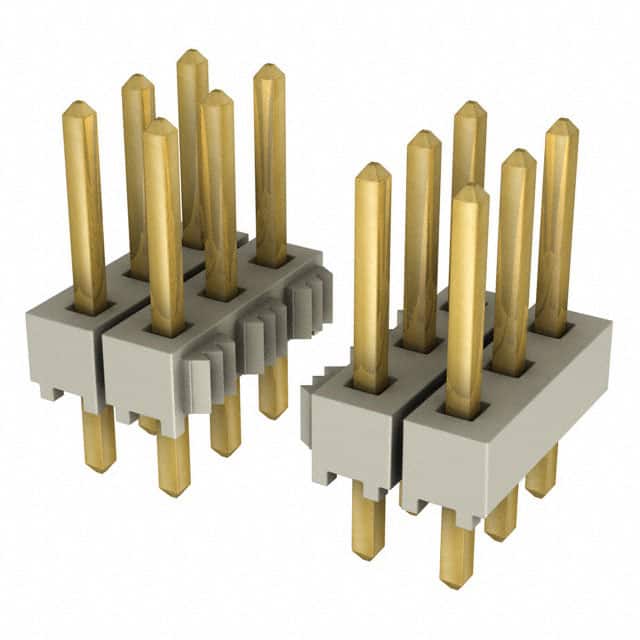

The Samtec HTSW-114-07-G-T is a high temperature PCB header strip from the HTSW series, designed for classic 0.100" (2.54mm) pitch applications. This through hole header features 42 positions arranged in 3 rows with square male pins. The contacts are made of phosphor bronze with a gold finish (0.25µm) over 50µ" nickel, ensuring reliable electrical performance.
Electrical ratings include a current rating of 5.7A per pin when mated with SSW socket strips (6.3A with SSQ) and a voltage rating of 550 VAC. The operating temperature range spans -55°C to 125°C, making it suitable for demanding environments. The natural LCP insulator meets UL94 V-0 flammability requirements and supports high-temperature board processing.
This header is versatile for board-to-board or cable interconnects. It mates with a wide range of Samtec socket strips such as SSW, SSQ, ESW, and BCS. The lead style -07 (overall contact length 10.92mm, tail length 5.84mm) is optimized for IDC cable assemblies. Packaging is bulk, and the product is lead-free solderable.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.88 | $3.88 |
| 10+ | $3.57 | $3.57 |
| 50+ | $3.56 | $3.56 |
| 100+ | $3.53 | $3.53 |
| 250+ | $3.47 | $3.47 |
| 500+ | $3.24 | $3.24 |
| 1,000+ | $2.98 | $2.98 |
| 2,500+ | $2.83 | $2.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 42 positions arranged in 3 rows.
The pitch is 2.54 mm (0.100 inches).
The current rating per pin is 5.7 A when mated with SSW socket strips and 6.3 A when mated with SSQ, with 2 positions powered.
The voltage rating is 550 VAC when mated with SSW socket strips.
It is a through hole mounting type with solder termination.
The operating temperature range is -55°C to 125°C.
