| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

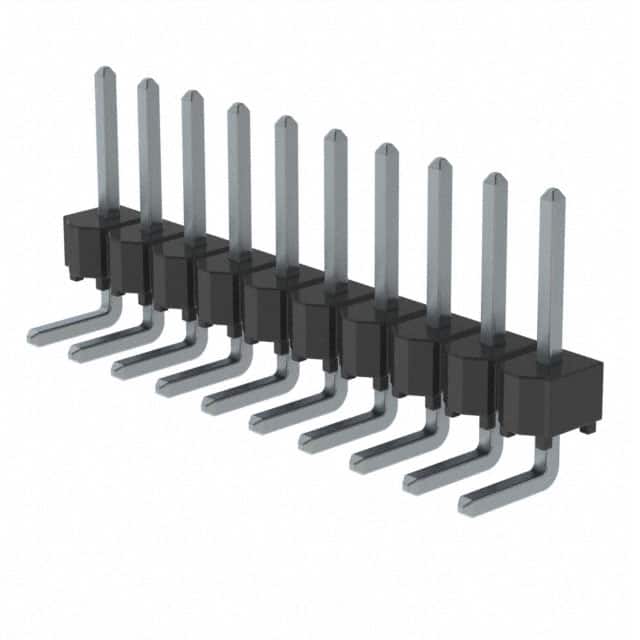

The Samtec HTSW-110-08-T-S-RA is a 10-position, single-row header designed for board-to-board or cable applications. It features a through-hole right-angle mounting style with solder termination, enabling efficient connections on PCBs.
With a 2.54mm (0.100") pitch and unshrouded design, this header accommodates 10 male square pins made of phosphor bronze with a tin finish. The insulator is molded from natural Liquid Crystal Polymer (LCP) rated UL94 V-0 for flammability resistance.
The header provides a push-pull fastening mechanism and operates within a temperature range of -55°C to 105°C. The contact length is 5.84mm (0.230") and the insulation height is 3.10mm (0.122"). All positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 50+ | $0.59 | $0.59 |
| 100+ | $0.58 | $0.58 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.45 | $0.45 |
| 2,000+ | $0.40 | $0.40 |
| 5,000+ | $0.37 | $0.37 |
| 10,000+ | $0.35 | $0.35 |
| 25,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.54mm (0.100")
10 positions, all loaded, in a single row.
Through-hole, right-angle mounting with solder termination.
-55°C to 105°C.
