Mfr Part #:

HTSW-110-07-L-S

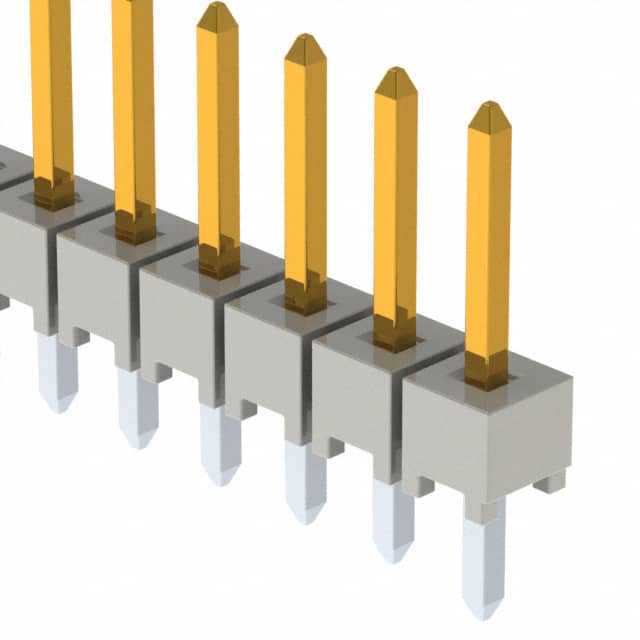

Samtec HTSW-110-07-L-S is a 10 position single row unshrouded male pin header with 2.54mm pitch, through hole solder termination, and tin plated phosphor bronze contacts.

✓ Total Stock: 6,000 pcs

$ Price Range: $0.33 - $0.92

HTSW-110-07-L-S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	6,000 pcs On Request	6000 pcs	On Request	1	On Request	On Request	12+	On Request	On Request

HTSW-110-07-L-S Description

Short technical summary and product information.

The Samtec HTSW-110-07-L-S is a 10 position single row unshrouded male pin header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and through hole mounting with solder termination. The contacts are made of phosphor bronze with a tin finish (10.0µin / 0.25µm thickness) and have a square shape. The insulator is natural colored Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The header has a push-pull fastening type and an operating temperature range of -55°C to 125°C. The contact length is 5.84mm (0.230") and the overall contact length is 10.92mm (0.430") with an insulation height of 2.54mm (0.100"). This component is suitable for a variety of interconnection needs where a reliable, unshrouded pin header is required.

HTSW-110-07-L-S Quick Information

Product Type: Header, Male Pins

Series: HTSW

Canonical Name: 10 Position Single Row 2.54mm Pitch Unshrouded Male Pin Header

Subcategory: Unshrouded Male Pin Header

HTSW-110-07-L-S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HTSW-110-07-L-S Estimated Pricing

Qty	Low	High
1+	$0.92	$0.92
50+	$0.81	$0.81
100+	$0.67	$0.67
500+	$0.52	$0.52
1,000+	$0.48	$0.48
2,000+	$0.42	$0.42
5,000+	$0.37	$0.37
10,000+	$0.33	$0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-110-07-L-S Features

10 position single row unshrouded header.
2.54mm pitch for standard spacing.
Tin plated phosphor bronze contacts.
Through hole solder termination.
LCP insulator rated UL94 V-0.

HTSW-110-07-L-S Applications

Board-to-board interconnection applications.
Cable-to-board connection systems.
Prototyping and test fixtures.
General purpose signal routing.

HTSW-110-07-L-S FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the HTSW-110-07-L-S have?

10 positions in a single row.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with a tin finish (10.0µin / 0.25µm).

Is the header shrouded or unshrouded?

Unshrouded.

What is the insulation material and flammability rating?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	2.54mm (0.100")
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.430" (10.92mm)
Pitch	2.54mm (0.100")
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
