| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

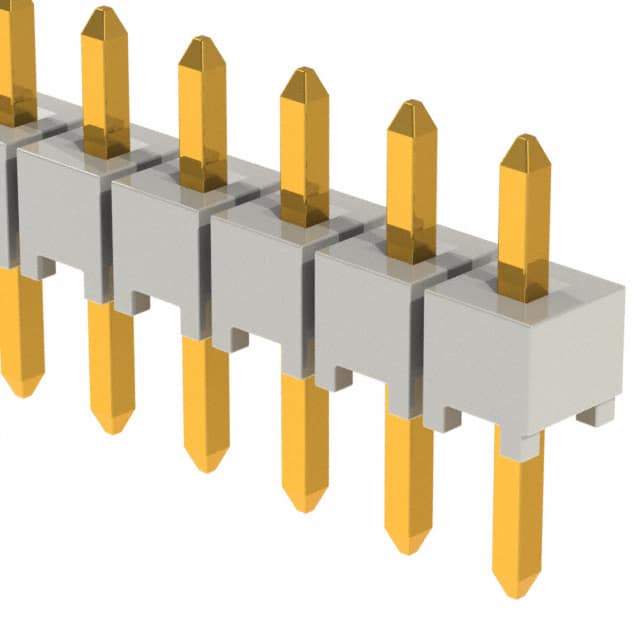

The Samtec HTSW-110-05-G-S is a 10-position, single row, unshrouded header with male pin contacts. It features a 2.54mm (0.100") pitch suitable for standard board-to-board or cable connections. The through-hole mounting style with solder termination ensures reliable mechanical and electrical attachment to PCBs.
Contacts are made of phosphor bronze with a 10µin (0.25µm) gold finish, providing excellent conductivity and corrosion resistance. The insulator is natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, suitable for high-temperature environments. The push-pull fastening type allows easy mating and unmating.
The operating temperature range is -55°C to 125°C, covering a wide range of industrial and consumer applications. The current rating varies by wire gauge, so appropriate wire sizing should be used. This header is designed for use in signal and power distribution applications where reliable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 50+ | $1.15 | $1.15 |
| 100+ | $1.03 | $1.03 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.84 | $0.84 |
| 2,000+ | $0.76 | $0.76 |
| 5,000+ | $0.71 | $0.71 |
| 10,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
Through hole.
The current rating varies by wire gauge used.
-55°C to 125°C.
Gold with 10µin (0.25µm) thickness.
Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
