Mfr Part #:

HTSW-106-24-F-S

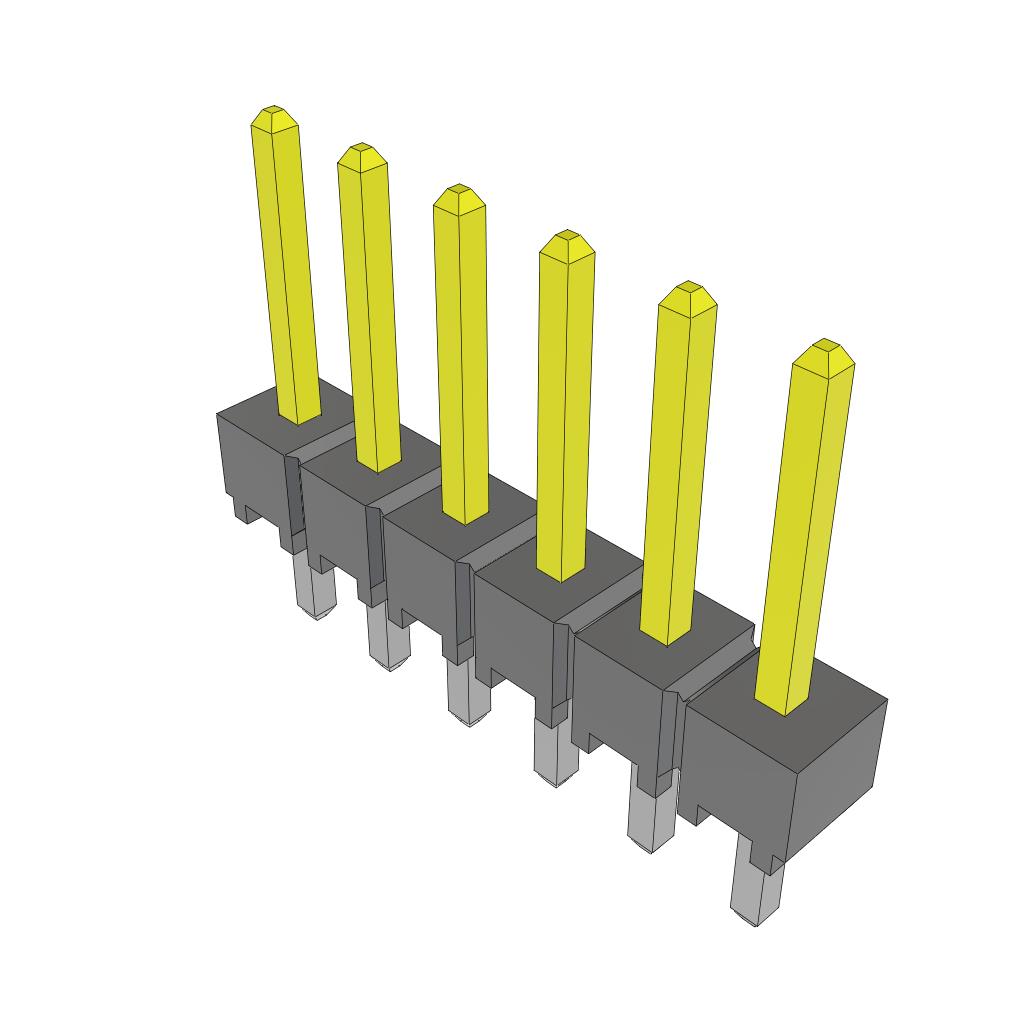

The HTSW-106-24-F-S is a 6-position unshrouded male pin header from Samtec with 2.54mm pitch. It features through hole mounting and tin plated phosphor bronze contacts.

✓ Total Stock: 4 pcs

$ Price Range: $0.61 - $6.01

HTSW-106-24-F-S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	14+	On Request	On Request

HTSW-106-24-F-S Description

Short technical summary and product information.

The HTSW-106-24-F-S is a 6-position single row male pin header designed for board-to-board or cable interconnection. It features a 2.54mm pitch and through hole mounting with solder termination, making it suitable for reliable PCB connections.

Electrical and mechanical characteristics include an operating temperature range of -55°C to 125°C and a contact length of 6.73mm with an overall length of 12.19mm. The unshrouded push-pull fastening type allows easy mating and unmating.

The header is constructed with liquid crystal polymer insulation (UL94 V-0 rated) and phosphor bronze contacts with a tin finish (3.00µin thickness). It is designed for use in various applications where a standard unshrouded header is required.

HTSW-106-24-F-S Quick Information

Product Type: Header, Male Pins

Series: HTSW

Canonical Name: Samtec HTSW-106-24-F-S 6-Position 2.54mm Pitch Single Row Male Pin Header

Subcategory: Male Pin Header

HTSW-106-24-F-S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HTSW-106-24-F-S Estimated Pricing

Qty	Low	High
1+	$0.61	$0.61
100+	$6.01	$6.01
500+	$5.89	$5.89
1,000+	$5.78	$5.78
5,000+	$5.66	$5.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-106-24-F-S Features

6 positions in single row configuration.
2.54mm (0.100") pitch spacing.
Through hole mounting with solder termination.
Tin plated phosphor bronze contacts.
Unshrouded push-pull fastening type.

HTSW-106-24-F-S Applications

Suitable for board-to-board connections.
Ideal for cable-to-board interconnect applications.
Used in test and measurement equipment.

HTSW-106-24-F-S FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the HTSW-106-24-F-S have?

It has 6 positions in a single row.

What is the pitch of this header?

The pitch is 2.54mm (0.100").

What mounting type is used?

Through hole mounting with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What material are the contacts made of?

Phosphor bronze with tin finish (3.00µin thickness).

What is the insulation material and flammability rating?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

Is the header shrouded or unshrouded?

Unshrouded with push-pull fastening.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	3.00µin (0.076µm)
Contact Length	6.73mm (0.265")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	2.54mm (0.100")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.480" (12.19mm)
Pitch	2.54mm (0.100")
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
