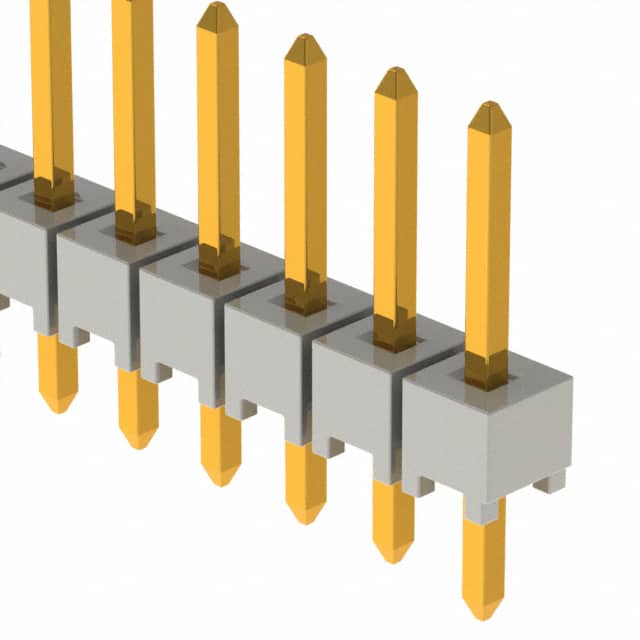

HTSW-106-07-G-S Samtec HTSW-106-07-G-S is a 6-position single row unshrouded male pin header with 2.54mm pitch, through hole mounting, and gold contact finish.
Mfr Part #:

HTSW-106-07-G-S

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec HTSW-106-07-G-S is a 6-position single row unshrouded male pin header with 2.54mm pitch, through hole mounting, and gold contact finish.
✓ Total Stock: 2,085 pcs
$ Price Range: $0.29 - $0.46

HTSW-106-07-G-S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
2,085 pcs
On Request
2085 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-106-07-G-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

HTSW-106-07-G-S Description

Short technical summary and product information.

The Samtec HTSW-106-07-G-S is a 6-position single row unshrouded male pin header from the HTSW (Hi-Temp Strip) series. It features a 2.54mm (0.100") pitch and through hole solder termination with a straight lead style. The header is designed for board-to-board or cable applications.



The contacts are made of phosphor bronze with a gold plating of 0.25µm (10.0µin) over 1.27µm nickel. The insulator is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to +125°C. The overall contact length is 10.92mm (0.430") with a contact length of 5.84mm (0.230").

HTSW-106-07-G-S Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-106-07-G-S 6-Position Single Row Unshrouded Male Pin Header, 2.54mm Pitch, Through Hole, Gold Plating
Subcategory: Unshrouded Male Pin Header

HTSW-106-07-G-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HTSW-106-07-G-S Estimated Pricing

Qty Low High
1+ $0.46 $0.46
100+ $0.34 $0.34
500+ $0.32 $0.32
5,000+ $0.29 $0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-106-07-G-S Features

  • 6-position single row unshrouded header.
  • 2.54mm pitch with through hole mounting.
  • Gold plated phosphor bronze contacts.
  • LCP insulator with UL94 V-0 rating.
  • Operating temperature range -55°C to +125°C.

HTSW-106-07-G-S Applications

  • Board-to-board interconnection in electronic assemblies.
  • Cable-to-board connections using IDC cable mates.
  • High-temperature environments requiring LCP insulator.
  • Applications needing gold plated contacts for reliability.

HTSW-106-07-G-S FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the HTSW-106-07-G-S?

The pitch is 2.54mm (0.100").

How many positions does the HTSW-106-07-G-S have?

It has 6 positions in a single row.

What is the mounting type for this header?

Through hole solder termination.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold plating with 0.25µm (10.0µin) thickness over nickel.
