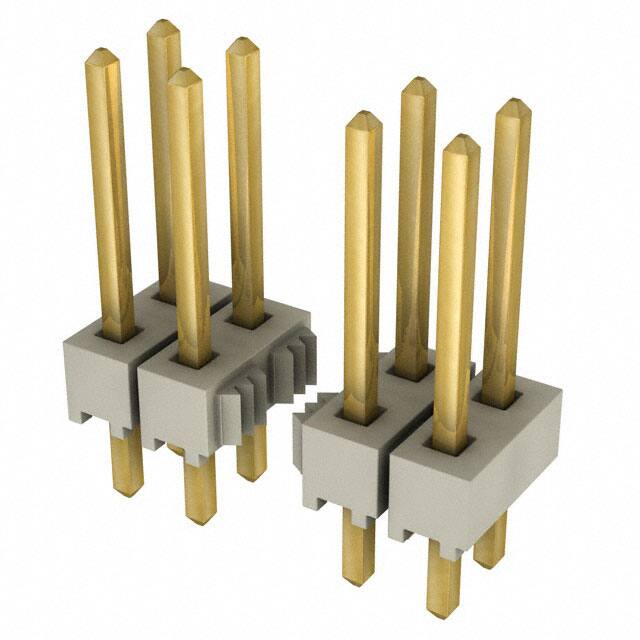

HTSW-105-14-G-D Samtec HTSW-105-14-G-D is a 10 position, 2 row, 2.54mm pitch through hole header with gold plated square pins.
Mfr Part #:

HTSW-105-14-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec HTSW-105-14-G-D is a 10 position, 2 row, 2.54mm pitch through hole header with gold plated square pins.
✓ Total Stock: 5 pcs
$ Price Range: $0.65 - $1.29

HTSW-105-14-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 1640 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-105-14-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

HTSW-105-14-G-D Description

Short technical summary and product information.

The Samtec HTSW-105-14-G-D is a 10-position, 2-row unshrouded header with a 2.54mm pitch and 2.54mm row spacing. It features gold-plated phosphor bronze square pins and a natural Liquid Crystal Polymer (LCP) insulator rated UL94 V-0.



This through-hole header is designed for board-to-board or cable applications and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, and IDSS series connectors. The HTSW series is lead-free solderable and operates from -55°C to +125°C.



Contact length is 8.13mm with an overall contact length of 13.46mm. The push-pull fastening type and unshrouded design allow for easy mating and unmating.

HTSW-105-14-G-D Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-105-14-G-D 10 Position 2.54mm Pitch Through Hole Header
Subcategory: Unshrouded

HTSW-105-14-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HTSW-105-14-G-D Estimated Pricing

Qty Low High
1+ $1.29 $1.29
50+ $1.23 $1.23
100+ $1.05 $1.05
500+ $0.96 $0.96
1,000+ $0.85 $0.85
2,000+ $0.79 $0.79
5,000+ $0.72 $0.72
10,000+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-105-14-G-D Features

  • 10 position 2.54mm pitch header.
  • Gold plated phosphor bronze contacts.
  • Through hole solder termination.
  • LCP insulator rated UL94 V-0.
  • Operating temperature -55 to 125°C.

HTSW-105-14-G-D Applications

  • Board-to-board interconnect applications.
  • Cable-to-board connections with IDC cables.
  • Prototyping and test fixtures.
  • Industrial control and automation systems.

HTSW-105-14-G-D FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the HTSW-105-14-G-D?

The pitch is 2.54mm (0.100").

How many positions does the HTSW-105-14-G-D have?

It has 10 positions in 2 rows.

What is the operating temperature range?

-55°C to +125°C.

What is the mounting type?

Through hole with solder termination.

What is the current rating?

Current rating varies by mated connector; for example, 5.7A per pin when mated with SSW.

What is the voltage rating?

550 VAC when mated with SSW.
