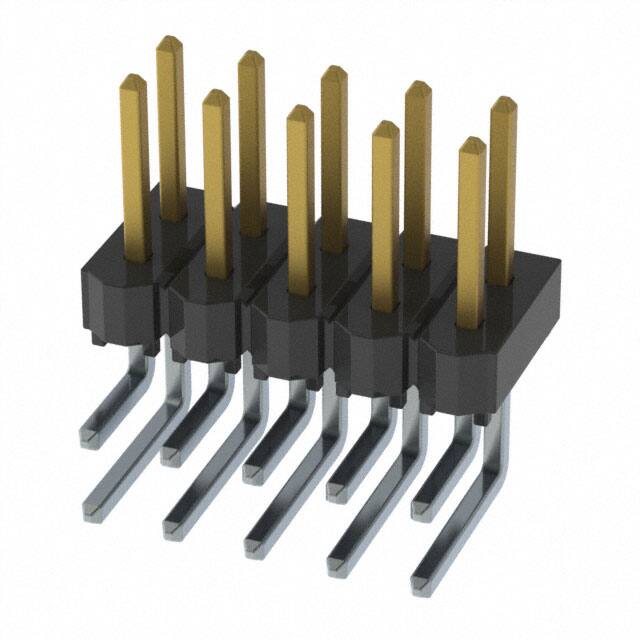

The Samtec HTSW-105-08-L-D-RA is a 10-position, 2-row male pin header with a 2.54mm (0.100") pitch and row spacing. It features a right-angle, through-hole mounting style with solder termination, making it suitable for PCB layouts requiring a low-profile right-angle connection. The unshrouded design allows mating with standard socket connectors.
Mechanically, the header uses phosphor bronze contacts with a tin finish (10.0µin thickness) and a square contact shape. The insulator is molded from Liquid Crystal Polymer (LCP) in natural color, with an insulation height of 6.10mm. The push-pull fastening type ensures easy mating and unmating.
The connector is rated for an operating temperature range of -55°C to 125°C and carries a UL94 V-0 flammability rating for the insulation material. Current rating is dependent on wire gauge, and the header is suitable for board-to-board or cable-to-board applications.
This header is ideal for general-purpose interconnection in electronic assemblies where 2.54mm pitch headers are standard. The right-angle orientation facilitates edge-mounted or parallel board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
| 50+ | $0.87 | $0.87 |
| 100+ | $0.74 | $0.74 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.56 | $0.56 |
| 2,000+ | $0.49 | $0.49 |
| 5,000+ | $0.42 | $0.42 |
| 10,000+ | $0.38 | $0.38 |
| 25,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
2.54mm (0.100").
Through Hole, Right Angle with solder termination.
Phosphor bronze with a tin finish (10.0µin thickness).
-55°C to 125°C.
Liquid Crystal Polymer (LCP) in natural color.
