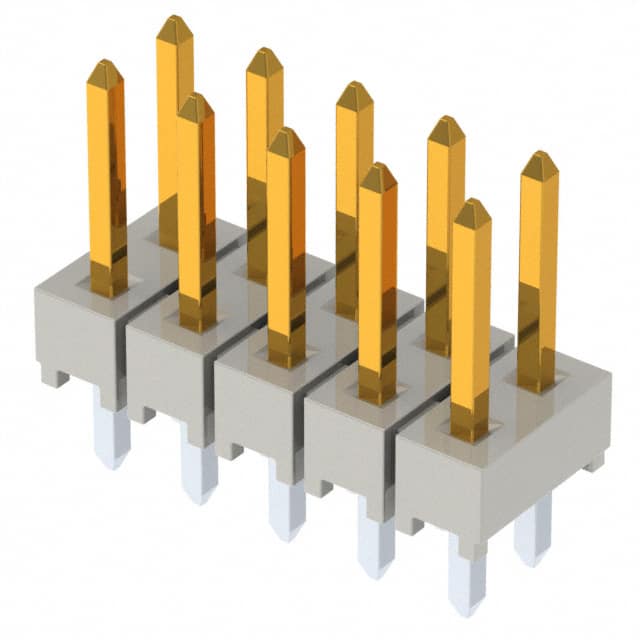

HTSW-105-07-S-D 10 position, 2 row, 2.54mm pitch through-hole header with male pins, unshrouded. Part of the HTSW series from Samtec.
Mfr Part #:

HTSW-105-07-S-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10 position, 2 row, 2.54mm pitch through-hole header with male pins, unshrouded. Part of the HTSW series from Samtec.
✓ Total Stock: 3,500 pcs
$ Price Range: $0.56 - $0.83

HTSW-105-07-S-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-105-07-S-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

HTSW-105-07-S-D Description

Short technical summary and product information.

The HTSW-105-07-S-D is a 10 position, 2 row, 2.54mm pitch through-hole header from Samtec's HTSW series. It features male pins with tin plating over phosphor bronze contacts, offering reliable performance for board-to-board or cable-to-board applications. The insulator is made of natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. This connector supports an operating temperature range of -55°C to 125°C and is lead-free solderable. The unshrouded design allows flexible mating with various Samtec socket and cable assemblies.

HTSW-105-07-S-D Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-105-07-S-D 10 Position Header, Male Pins, 2.54mm Pitch, Through Hole
Subcategory: Male Pins

HTSW-105-07-S-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HTSW-105-07-S-D Estimated Pricing

Qty Low High
1+ $0.83 $0.83
50+ $0.83 $0.83
100+ $0.83 $0.83
500+ $0.76 $0.76
1,000+ $0.66 $0.66
2,000+ $0.60 $0.60
5,000+ $0.56 $0.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-105-07-S-D Features

  • 10 position dual row header with 2.54mm pitch.
  • Through-hole mounting for secure PCB attachment.
  • Tin plated phosphor bronze contacts.
  • Operating temperature range -55°C to 125°C.
  • UL94 V-0 flammability rated LCP insulator.

HTSW-105-07-S-D Applications

  • Board-to-board interconnection in industrial electronics.
  • Cable-to-board connection using IDC cable mates.
  • Used in high-temperature environments up to 125°C.

HTSW-105-07-S-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the HTSW-105-07-S-D have?

It has 10 positions in 2 rows.

What is the pitch of this connector?

The pitch is 2.54mm (0.100").

What is the mounting type?

Through Hole.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin plating over 50 µ" (1.27 µm) nickel, with thickness of 0.76µm (30µin).

What is the material flammability rating?

UL94 V-0.

What is the current rating?

Varies by wire gauge; per pin ratings range from 4.3A to 6.3A depending on mating series.
