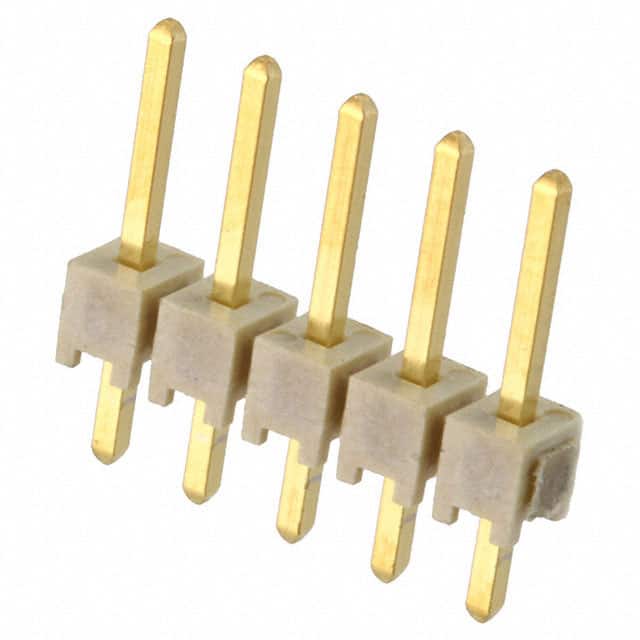

The Samtec HTSW-105-07-G-S is a 5-position unshrouded header from the HTSW series. It features a 2.54mm pitch and a single row of male pins. The header is designed for through-hole mounting and solder termination, making it suitable for robust PCB connections.
Electrical specifications include a current rating of 5.7A per pin when mated with an SSW receptacle (2 positions powered) and a voltage rating of 550 VAC when mated with SSW. The header is rated for an operating temperature range of -55°C to +125°C with gold plating. The contacts are made of phosphor bronze with a gold finish of 10.0µin, and the insulator is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This header can mate with various Samtec board-mount receptacles such as SSW, SSQ, SSM, and cable mates like IDSD and IDSS. It is commonly used in board-to-board or cable-to-board applications. The overall contact length is 0.430 inches (10.92mm) with an insulation height of 2.54mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 50+ | $0.35 | $0.35 |
| 100+ | $0.23 | $0.23 |
| 2,000+ | $0.23 | $0.23 |
| 5,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.54mm (0.100").
5.7A per pin (mated with SSW, 2 positions powered).
550 VAC (mated with SSW).
Through-hole mounting.
-55°C to +125°C (with gold plating).
RoHS status is listed as RoHS3 Compliant but unverified; REACH unaffected.
