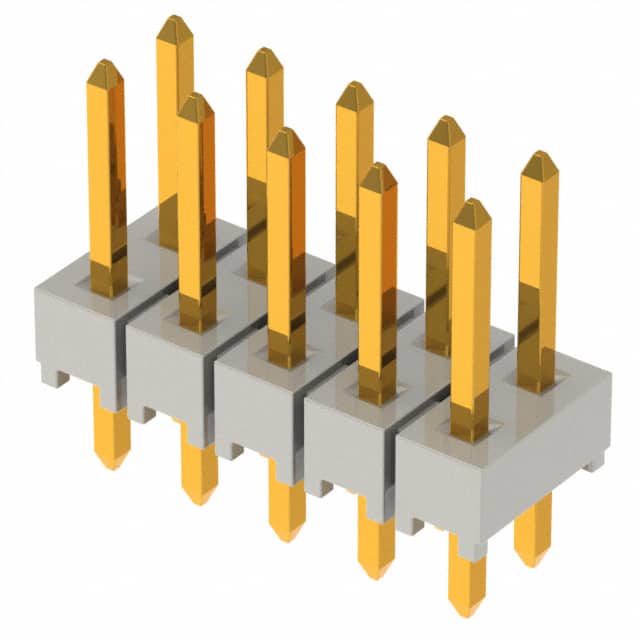

HTSW-105-07-G-D Samtec HTSW-105-07-G-D is a 10-position, 2.54mm pitch, through-hole unshrouded male pin header with gold-plated phosphor bronze contacts. It is rated for 5.7A per pin and 550VAC when mated with SSW series.
Mfr Part #:

HTSW-105-07-G-D

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec HTSW-105-07-G-D is a 10-position, 2.54mm pitch, through-hole unshrouded male pin header with gold-plated phosphor bronze contacts. It is rated for 5.7A per pin and 550VAC when mated with SSW series.
✓ Total Stock: 160 pcs
$ Price Range: $0.50 - $0.72

HTSW-105-07-G-D Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-105-07-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

HTSW-105-07-G-D Description

Short technical summary and product information.

The HTSW-105-07-G-D is a 10-position, 2.54mm pitch, through-hole unshrouded male pin header from Samtec's HTSW series (high-temperature strip). It features two rows of five pins each, with gold-plated phosphor bronze contacts and a natural LCP insulator rated UL94 V-0.



Electrically, it is rated for 5.7A per pin and 550VAC when mated with SSW series receptacles. The operating temperature range is -55°C to +125°C with gold plating, and contact finish thickness is 0.25µm gold over nickel.



Mechanically, the overall contact length is 10.92mm, mating contact length is 5.84mm, and insulation height is 2.54mm. It uses a push-pull fastening mechanism with solder termination. The HTSW series is lead-free solderable, making it suitable for high-temperature assembly processes.

HTSW-105-07-G-D Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-105-07-G-D 10-Position 2.54mm Pitch Through-Hole Unshrouded Male Pin Header
Subcategory: Unshrouded Header

HTSW-105-07-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HTSW-105-07-G-D Estimated Pricing

Qty Low High
1+ $0.72 $0.72
100+ $0.62 $0.62
500+ $0.55 $0.55
1,000+ $0.53 $0.53
2,000+ $0.51 $0.51
10,000+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-105-07-G-D Features

  • Two-row header with 2.54mm pitch.
  • Gold-plated phosphor bronze contacts.
  • Rated for 5.7A per pin.
  • Rated for 550VAC operation.
  • Operates from -55°C to 125°C.

HTSW-105-07-G-D Applications

  • Used in board-to-board interconnects.
  • Ideal for cable-to-board connections.
  • Suitable for high-temperature environments.
  • Common in industrial control systems.

HTSW-105-07-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the HTSW-105-07-G-D have?

10 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch.

What is the current rating per pin?

5.7A per pin when mated with SSW series.

What is the voltage rating?

550VAC when mated with SSW series.

What is the mounting type?

Through-hole with solder termination.

What is the operating temperature range?

-55°C to +125°C with gold plating.

What contact material and finish are used?

Phosphor bronze with 0.25µm gold plating.
