Mfr Part #:

HTSW-104-08-T-D-RA

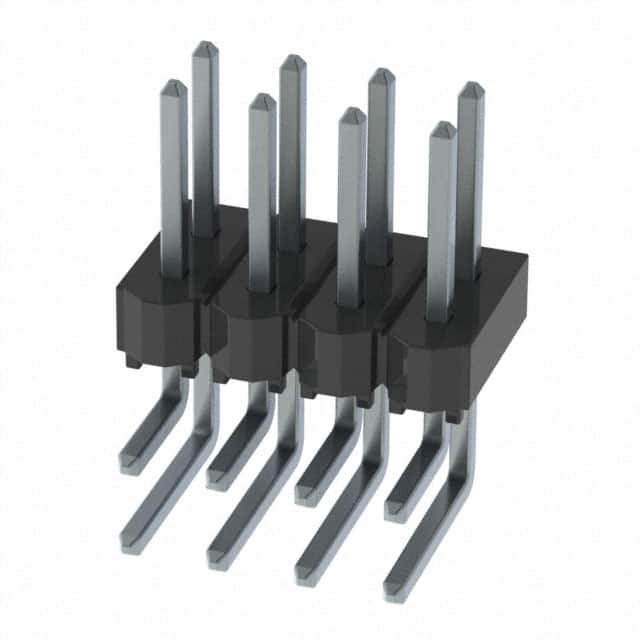

Samtec HTSW-104-08-T-D-RA is an 8 position 2.54mm pitch unshrouded header with right angle through hole mounting and tin-plated phosphor bronze contacts.

✓ Total Stock: 103 pcs

$ Price Range: $0.29 - $0.56

HTSW-104-08-T-D-RA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	103 pcs On Request	103 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HTSW-104-08-T-D-RA Description

Short technical summary and product information.

The Samtec HTSW-104-08-T-D-RA is a rectangular connector from the Header, Male Pins category. It features 8 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing, designed for board-to-board or cable-to-board interconnections. The unshrouded header uses a male pin contact type with square, tin-plated phosphor bronze contacts. Each contact has a length of 5.84mm. The mounting is through hole, right angle orientation, with solder termination. The push-pull fastening type ensures secure mating. The header is built with a black liquid crystal polymer (LCP) insulator measuring 6.10mm in height, colored natural. It is rated for UL94 V-0 flammability and operates from -55°C to 105°C. Current rating varies by wire gauge. No datasheet is linked at time of publication.

HTSW-104-08-T-D-RA Quick Information

Product Type: Header, Male Pins

Series: HTSW

Canonical Name: 8 Position 2.54mm Pitch Unshrouded Header, Right Angle

Subcategory: Unshrouded Header

HTSW-104-08-T-D-RA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

HTSW-104-08-T-D-RA Estimated Pricing

Qty	Low	High
1+	$0.56	$0.56
50+	$0.47	$0.47
100+	$0.38	$0.38
500+	$0.37	$0.37
2,000+	$0.34	$0.34
5,000+	$0.31	$0.31
10,000+	$0.29	$0.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-104-08-T-D-RA Features

Right angle through hole mounting for compact designs.
8 position header with 2.54mm pitch.
Unshrouded design allows versatile connections.
Tin-plated phosphor bronze contacts for reliable conductivity.
UL94 V-0 rated LCP insulation for high temperature performance.

HTSW-104-08-T-D-RA Applications

Board-to-board interconnection in compact modules.
Cable-to-board connections in industrial equipment.
Prototyping and test applications requiring reliable headers.
Right angle configuration for low-profile systems.

HTSW-104-08-T-D-RA FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the HTSW-104-08-T-D-RA header have?

8 positions.

What is the pitch of this header?

2.54mm.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 105°C.

What is the contact material?

Phosphor bronze.

What is the insulation material?

Liquid crystal polymer (LCP).

Is this header shrouded?

No, it is unshrouded.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Tin
Contact Length	5.84mm (0.230")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Halogen Free	Yes
Industrial Grade	Yes
Insulation Color	Natural
Insulation Height	6.10mm (0.240")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54 mm
Lead Style	Right Angle
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
