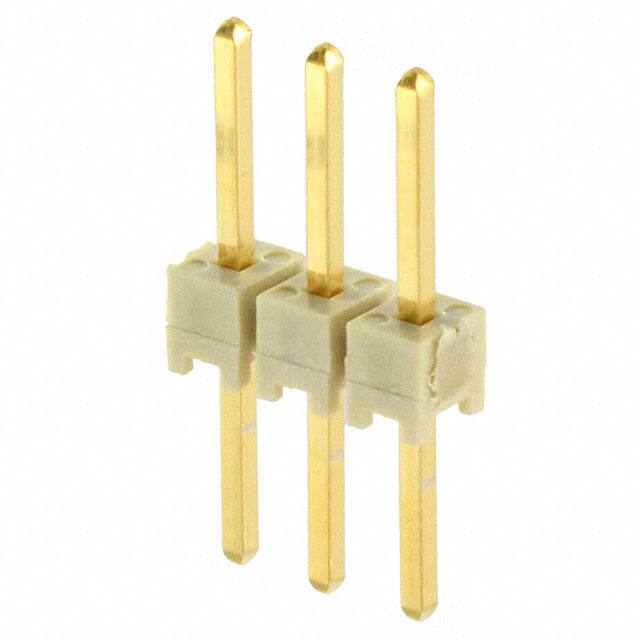

HTSW-103-08-G-S HTSW-103-08-G-S is a 3-position, single-row, through-hole header from Samtec. It features a 2.54mm pitch, gold-plated phosphor bronze contacts, and LCP insulation.
Mfr Part #:

HTSW-103-08-G-S

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
HTSW-103-08-G-S is a 3-position, single-row, through-hole header from Samtec. It features a 2.54mm pitch, gold-plated phosphor bronze contacts, and LCP insulation.
✓ Total Stock: 9,293 pcs
$ Price Range: $0.19 - $0.29

HTSW-103-08-G-S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,293 pcs
On Request
9293 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-103-08-G-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

HTSW-103-08-G-S Description

Short technical summary and product information.

The HTSW-103-08-G-S is a through-hole header from Samtec's HTSW series, designed for classic 0.100" (2.54mm) pitch applications. It has 3 positions in a single row, with unshrouded male pins. The contacts are made of phosphor bronze with a 10µin gold finish, providing reliable connectivity. The insulation is natural liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, suitable for high-temperature board processing. The header has a push-pull fastening system and is designed for board-to-board or cable connections. The overall contact length is 0.530" (13.46mm) with a post length of 0.230" (5.84mm). It operates over a temperature range of -55°C to 125°C. Packaging is bulk.

HTSW-103-08-G-S Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-103-08-G-S Header, Male Pins, 3 Position, 2.54mm Pitch, Through Hole, Gold Plating
Subcategory: Male Pins

HTSW-103-08-G-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

HTSW-103-08-G-S Estimated Pricing

Qty Low High
1+ $0.29 $0.29
100+ $0.25 $0.25
500+ $0.23 $0.23
1,000+ $0.21 $0.21
2,000+ $0.20 $0.20
5,000+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-103-08-G-S Features

  • 3-position single-row header.
  • 2.54mm (0.100 inch) pitch.
  • Gold-plated phosphor bronze contacts.
  • Through-hole solder termination.
  • UL94 V-0 rated LCP insulation.

HTSW-103-08-G-S Applications

  • Suitable for board-to-board connections.
  • Ideal for high-temperature processing.
  • Used in wire-to-board cable assemblies.
  • Compatible with Samtec socket strips.
  • Applicable in automotive systems (A-Series).

HTSW-103-08-G-S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the HTSW-103-08-G-S have?

3 positions in a single row.

What is the pitch of this header?

2.54mm (0.100 inches).

What is the mounting type?

Through hole with solder termination.

What is the current rating?

Varies by wire gauge; not specified as a fixed value.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold, 10µin (0.25µm).

Is the HTSW-103-08-G-S RoHS compliant?

RoHS status is listed as RoHS3 compliant but is unverified.
