| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
293 pcs
|
293 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

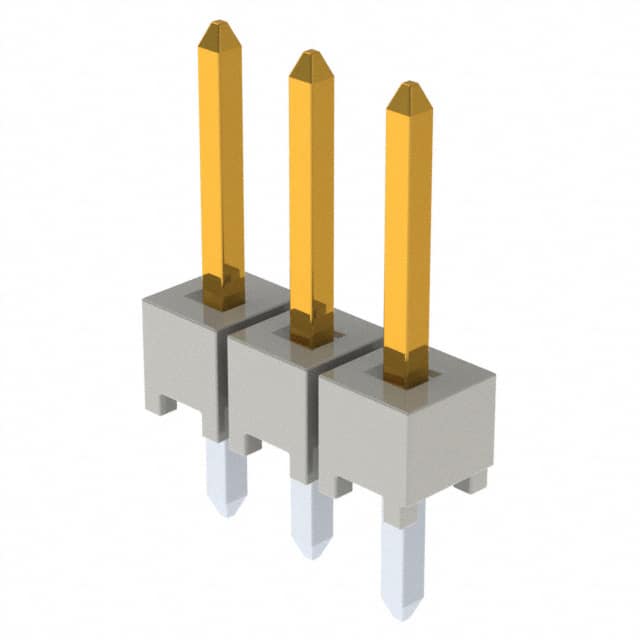

The HTSW-103-07-S-S is a high-temperature, 3-position, single-row, unshrouded header from Samtec's HTSW series. It features a 2.54mm (0.100") pitch and is designed for through-hole solder mounting. The header uses phosphor bronze contacts with a tin plating over a 50µin nickel underplate, ensuring reliable conductivity and solderability.
The insulator is molded from natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, making it suitable for high-temperature board processing. The header has a push-pull fastening type and is unshrouded, allowing for flexible mating with various socket strips and cable assemblies.
Electrical ratings include a voltage rating of 550 VAC and a current rating of 5.7 A per pin when mated with Samtec SSW series socket strips. The operating temperature range is -55°C to 105°C for tin-plated versions.
This header is packaged in bulk and is lead-free solderable, compliant with RoHS and REACH regulations. It is ideal for board-to-board and cable-to-board applications requiring a compact, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
| 50+ | $0.29 | $0.29 |
| 100+ | $0.22 | $0.22 |
| 1,000+ | $0.22 | $0.22 |
| 2,000+ | $0.21 | $0.21 |
| 5,000+ | $0.19 | $0.19 |
| 10,000+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions in a single row.
2.54mm (0.100").
5.7 A per pin when mated with Samtec SSW series socket strips.
550 VAC when mated with Samtec SSW series socket strips.
Through hole with solder termination.
-55°C to 105°C for tin-plated versions.
Tin plating over 50µin nickel underplate.
