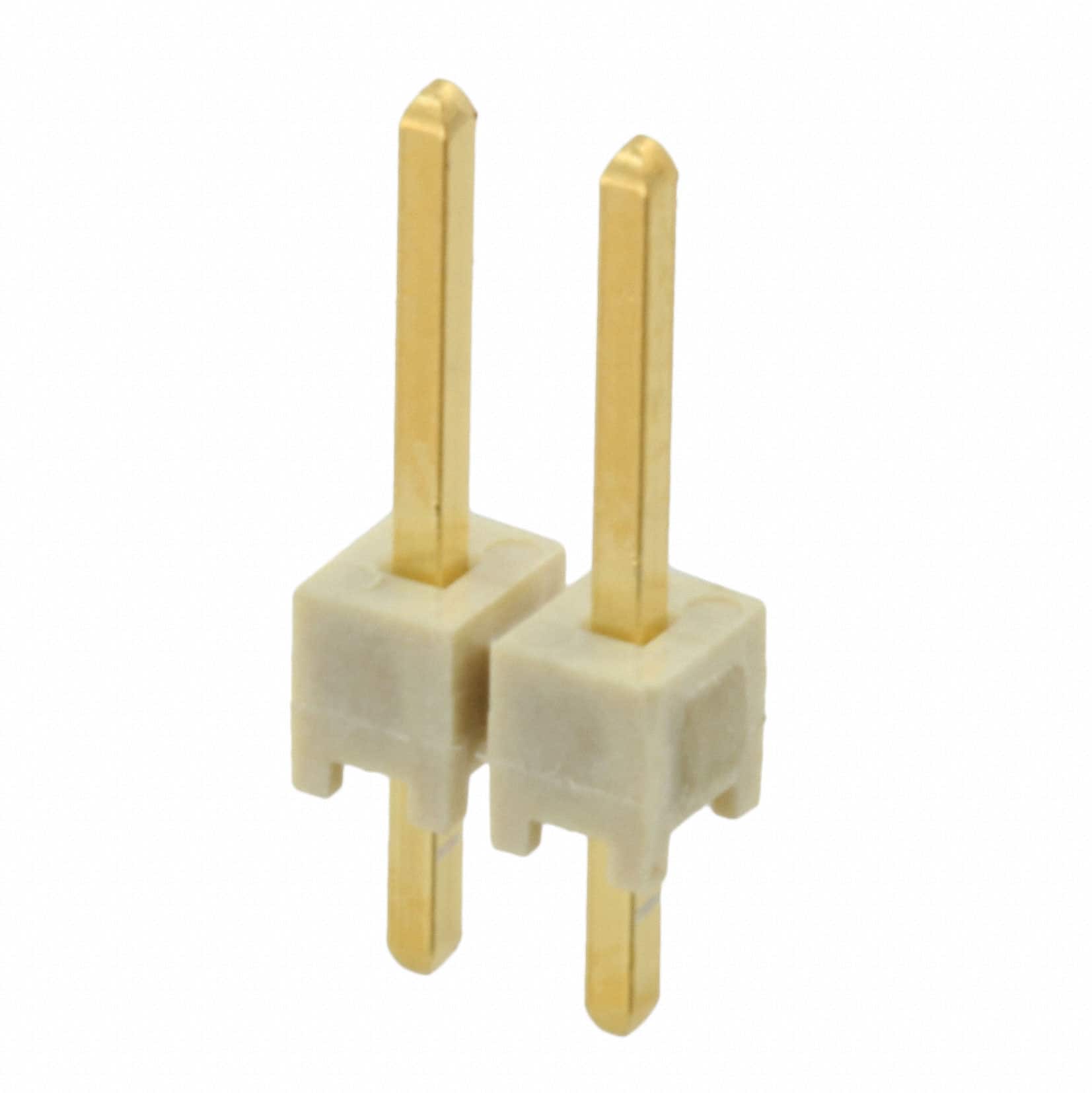

HTSW-102-07-L-S The HTSW-102-07-L-S is a 2-position unshrouded header from Samtec's HTSW series. It features a 2.54mm pitch, single row, through-hole mounting with tin-plated phosphor bronze contacts.
Mfr Part #:

HTSW-102-07-L-S

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The HTSW-102-07-L-S is a 2-position unshrouded header from Samtec's HTSW series. It features a 2.54mm pitch, single row, through-hole mounting with tin-plated phosphor bronze contacts.
✓ Total Stock: 3,394 pcs
$ Price Range: $0.06 - $0.10

HTSW-102-07-L-S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
3,389 pcs
On Request
3389 pcs On Request 1 On Request On Request 18+ On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTSW-102-07-L-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Failure Rate
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

HTSW-102-07-L-S Description

Short technical summary and product information.

The HTSW-102-07-L-S is a 2-position, single row unshrouded header from Samtec's HTSW (Hi-Temp Strip) series. It features a 2.54mm (0.100") pitch and uses a through-hole mounting termination with solder. The connector is designed for board-to-board or cable applications, featuring a push-pull fastening type.



The header has a natural Liquid Crystal Polymer (LCP) insulator with a flammability rating of UL94 V-0. Contacts are made of phosphor bronze with a tin finish of 10.0µin (0.25µm) over nickel. The contact length (tail) is 5.84mm (0.230") and overall contact length is 10.92mm (0.430"). The insulation height is 2.54mm (0.100").



This component is suitable for use in applications requiring high-temperature performance, with an operating temperature range of -55°C to 125°C. It is lead-free solderable as per the datasheet. Compliance with RoHS and REACH is low-confidence and should be verified with the manufacturer.

HTSW-102-07-L-S Quick Information

Product Type: Header, Male Pins
Series: HTSW
Canonical Name: Samtec HTSW-102-07-L-S 2 Position Single Row Unshrouded Header, 2.54mm Pitch, Through Hole, Tin Contacts
Subcategory: Male Pin Header

HTSW-102-07-L-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

HTSW-102-07-L-S Estimated Pricing

Qty Low High
1+ $0.10 $0.10
50+ $0.09 $0.09
100+ $0.08 $0.08
500+ $0.08 $0.08
1,000+ $0.07 $0.07
2,000+ $0.07 $0.07
5,000+ $0.07 $0.07
10,000+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTSW-102-07-L-S Features

  • 2-position single row unshrouded header.
  • 2.54mm pitch with through-hole mounting.
  • Tin-plated phosphor bronze contacts.
  • Natural LCP insulator rated UL94 V-0.
  • Operating temperature range -55°C to 125°C.

HTSW-102-07-L-S Applications

  • Board-to-board stacking or parallel connections.
  • Cable-to-board applications with IDC mates.
  • Used in high-temperature electronic assemblies.

HTSW-102-07-L-S FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the HTSW-102-07-L-S have?

2 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with 10.0µin (0.25µm) thickness over nickel.

What is the insulator material?

Natural Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
