Mfr Part #:

HTSW-102-05-H-S

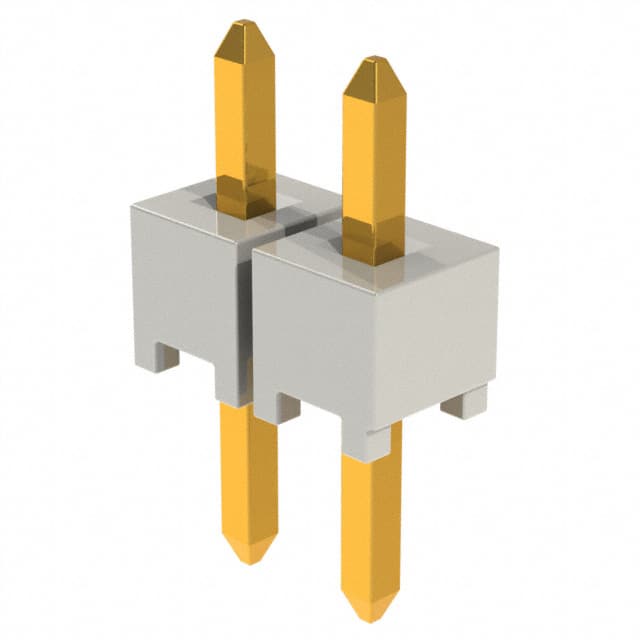

Name: HTSW-102-05-H-S
Brand: Samtec Inc.
SKU: HTSW-102-05-H-S

Mfr Name: Samtec Inc.

Description:

CONN HEADER VERT 2POS 2.54MM

Stock on Request

HTSW-102-05-H-S Description

Short technical summary and product information.

CONN HEADER VERT 2POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Length	0.105" (2.67mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.100" (2.54mm)
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	0.335" (8.51mm)
Pitch	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
