| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

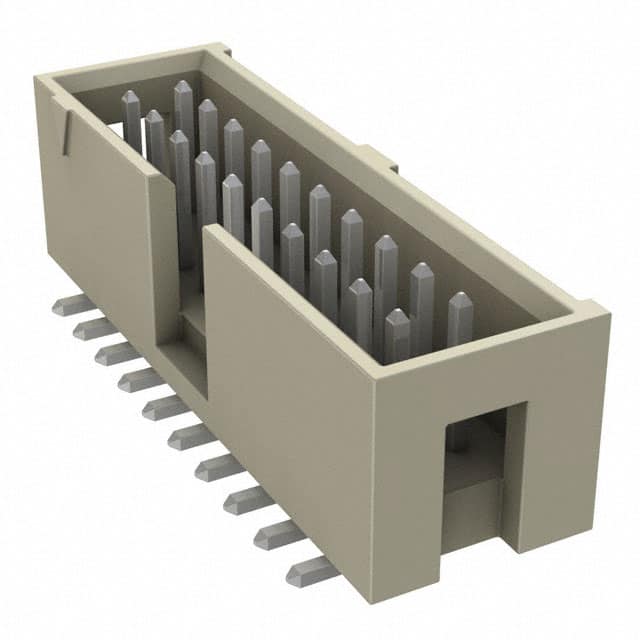

The Samtec HTST-110-01-T-DV is a 20-position, dual-row shrouded header from the HTST series of high-temperature terminal strips. It features a 2.54mm (0.100") pitch and row spacing, with square male pins that have a contact length of 6.35mm (0.250") and a tin finish over 50 µ" nickel underplate. The insulator is made of natural Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0.
This header is designed for board-to-cable/wire applications and mates with Samtec IDSD and HCSD IDC socket assemblies. It uses a push-pull fastening system and includes a keying slot for polarization. The surface mount termination (lead style -01) allows for SMD assembly, and the part is lead-free solderable.
Electrical ratings include 3.4A per contact current capacity, 425 VAC / 600 VDC voltage rating, and a minimum insulation resistance of 5000 MΩ. The operating temperature range is -55°C to +105°C when using tin plating. The product is packaged in tubes of 17 pieces and is RoHS, REACH, and Halogen Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.10 | $2.10 |
| 51+ | $1.58 | $1.58 |
| 102+ | $1.57 | $1.57 |
| 510+ | $1.46 | $1.46 |
| 1,003+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100").
3.4A per contact.
425 VAC / 600 VDC.
Surface mount.
-55°C to +105°C (with tin plating).
Yes, it is RoHS compliant and also meets REACH, Halogen Free, and China RoHS standards.
