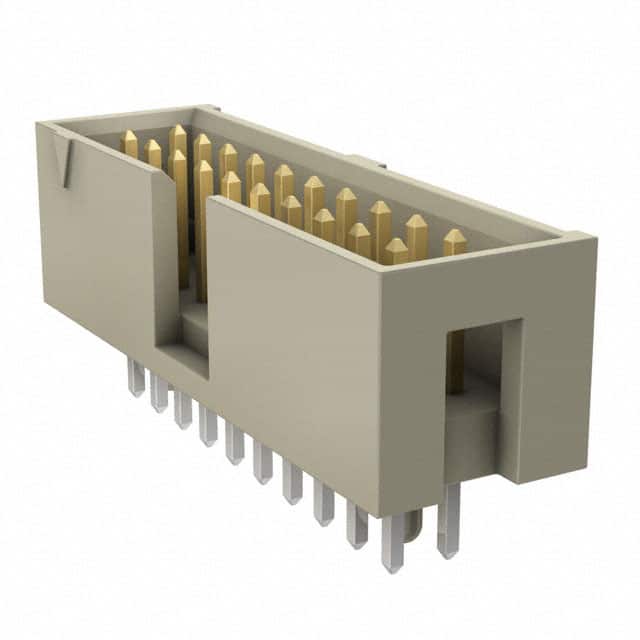

The Samtec HTST-110-01-L-DV-A-P-TR is a high-temperature shrouded header from the HTST series, designed for board-to-cable/wire applications. It offers 20 positions arranged in 2 rows with a standard 2.54mm pitch and row spacing. The connector features a 4-wall shrouded design with push-pull fastening, providing robust mechanical protection for the male pins.
Electrical ratings include 3.4A per contact current capacity and 425 VAC / 600 VDC voltage rating. The insulation resistance is 5000 MΩ minimum. The operating temperature range is -55°C to +125°C with gold plating, or -55°C to +105°C with tin plating. The part is lead-free solderable per the datasheet.
The connector is surface mount with solder termination and includes a pick-and-place pad and tape-and-reel packaging for automated assembly. The insulator is natural Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating. The plating option -L specifies 10 µ" gold on the mating post and matte tin on the solder tail, over 50 µ" nickel underplating. The SMT lead coplanarity is 0.15mm maximum. Additional features include a board guide and keying slot.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.69 | $4.69 |
| 25+ | $4.64 | $4.64 |
| 50+ | $4.45 | $4.45 |
| 125+ | $3.44 | $3.44 |
| 500+ | $3.02 | $3.02 |
| 1,000+ | $2.79 | $2.79 |
| 2,500+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100") pitch and row spacing.
3.4A per contact.
425 VAC / 600 VDC.
Surface mount with solder termination.
-55°C to +125°C with gold plating, -55°C to +105°C with tin plating.
10 µ" (0.25 µm) Gold on post, Matte Tin on tail (-L option).
