| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

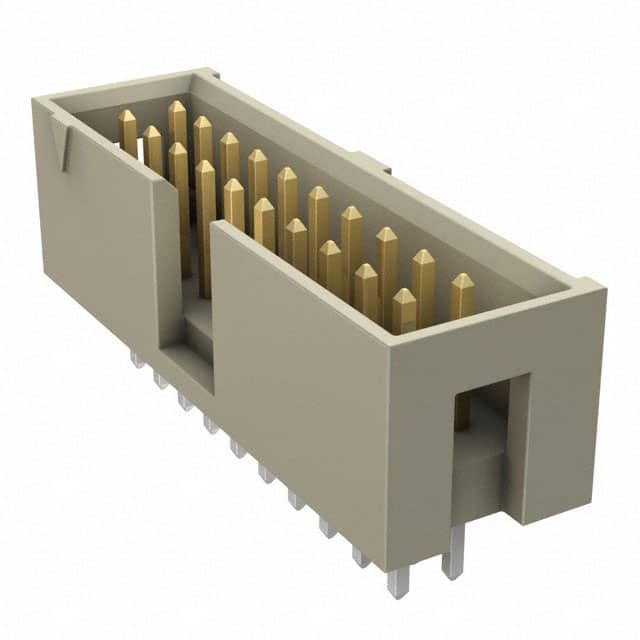

The Samtec HTST-110-01-L-D is a 20-position, 2-row, 2.54mm pitch shrouded header connector designed for board-to-cable/wire applications. It features male pins with phosphor bronze contacts and gold plating on the mating surface (10µ" Au) with matte tin on the termination tails. The insulator is made of natural LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating. The header is shrouded with a 4-wall design and includes a keying slot for proper alignment. Mounting is through hole with solder termination. Electrical ratings include 3.4A per contact current, 425 VAC / 600 VDC voltage, and 5000 MΩ minimum insulation resistance. Operating temperature range is -55°C to 125°C. The part number suffix -L indicates 10µ" gold plating on the post. This connector is suitable for industrial control, data communication, and other harsh environment applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.10 | $2.10 |
| 100+ | $1.79 | $1.79 |
| 500+ | $1.77 | $1.77 |
| 2,000+ | $1.63 | $1.63 |
| 5,000+ | $1.37 | $1.37 |
| 10,000+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100") pitch.
3.4A per contact.
425 VAC / 600 VDC.
Through hole with solder termination.
Gold on mating surface (10µ"), matte tin on termination.
-55°C to 125°C.
