Mfr Part #:

HTST-108-01-L-DV-P-TR

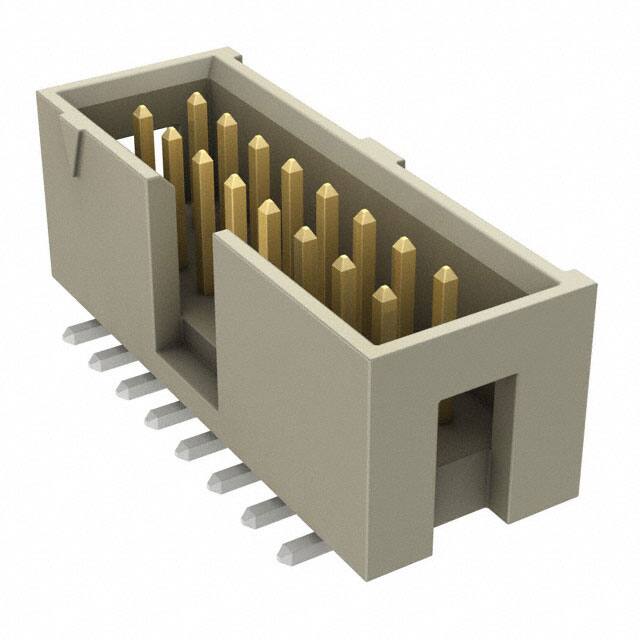

Samtec HTST-108-01-L-DV-P-TR is a 16-position, 2.54mm pitch shrouded header with male pins, designed for board-to-cable/wire applications, surface mount termination.

✓ Total Stock: 25 pcs

$ Price Range: $1.81 - $4.04

HTST-108-01-L-DV-P-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	25 pcs On Request	25 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HTST-108-01-L-DV-P-TR Description

Short technical summary and product information.

The Samtec HTST-108-01-L-DV-P-TR is a 16-position, 2-row shrouded header from the HTST series. It features a 2.54mm (0.100") pitch and row spacing, with a 4-wall shrouded design for robust mating. The contacts are made of phosphor bronze with a 10µ" gold plating on the post and matte tin on the tails, ensuring reliable signal integrity. The insulator is natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.

This header is rated for 3.4A per contact and can withstand 425 VAC / 600 VDC. It operates over a temperature range of -55°C to +125°C with gold plating. The surface mount termination includes a pick and place pad for automated assembly, and it is supplied in tape and reel packaging. Features include a keying slot for correct orientation.

Designed for board-to-cable/wire connections, the HTST-108-01-L-DV-P-TR mates with Samtec IDSD and HCSD series cable assemblies. It is suitable for high-temperature environments and lead-free soldering processes.

HTST-108-01-L-DV-P-TR Quick Information

Product Type: Header

Series: HTST

Canonical Name: Samtec HTST-108-01-L-DV-P-TR, 16 Position, 2.54mm Pitch, Shrouded Header, Male Pins, Surface Mount

Subcategory: Shrouded Header

HTST-108-01-L-DV-P-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

HTST-108-01-L-DV-P-TR Estimated Pricing

Qty	Low	High
1+	$4.04	$4.04
50+	$3.98	$3.98
100+	$2.91	$2.91
150+	$2.91	$2.91
900+	$2.33	$2.33
1,950+	$2.15	$2.15
4,950+	$1.81	$1.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTST-108-01-L-DV-P-TR Features

16 positions with 2 rows.
2.54mm pitch and row spacing.
Shrouded 4-wall design.
Gold plated phosphor bronze contacts.
Surface mount with pick and place pad.

HTST-108-01-L-DV-P-TR Applications

Board-to-cable/wire interconnections.
High-temperature environments up to 125°C.
Automated pick-and-place assembly.
Requires mating with IDSD or HCSD series.

HTST-108-01-L-DV-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the HTST-108-01-L-DV-P-TR have?

16 positions.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

3.4A per contact.

What is the voltage rating?

425 VAC / 600 VDC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C with gold plating.

What contact finish does this part have?

10µ" Gold on post, Matte Tin on tail.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	10µ" Gold on post, Matte Tin on tail
Contact Finish Thickness	10.0µin (0.25µm)
Contact Length	6.35mm (0.250")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Fastening Type	Push-Pull
Features	Keying Slot, Pick and Place
Halogen Free	Yes
Insulation Color	Natural
Insulation Height	8.89mm (0.350")
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Resistance	5000 MΩ
Lead Spacing	2.54 mm
Lead Style	-01 (2.92mm) .115" (Through-hole compatible but part is SMT with -DV)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	Tape & Reel (Full Reel Tape & Reel -FR if max qty)
Termination	Solder
Voltage Rating	425 VAC / 600 VDC
