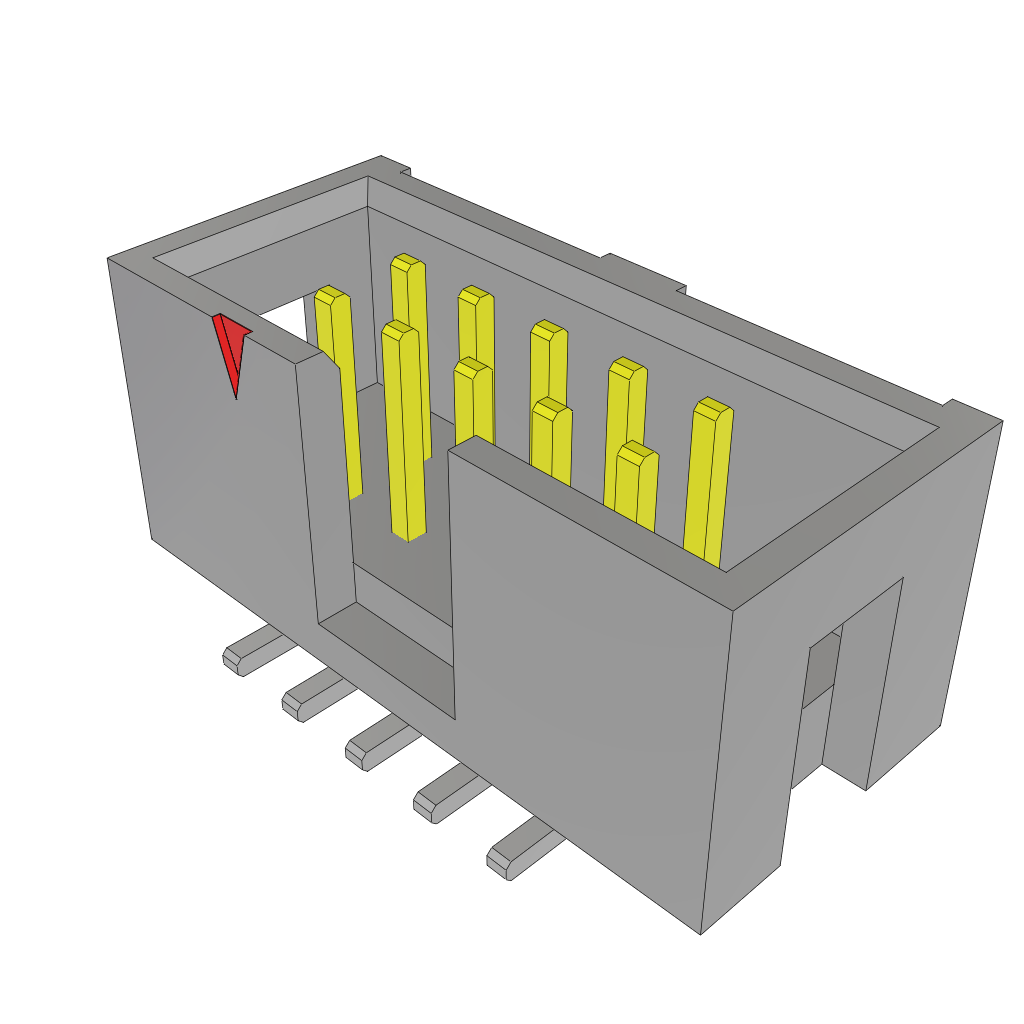

The Samtec HTST-105-01-LM-DV-TR is a 10-position, 2-row shrouded header from the HTST series, designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, with male square pins made of phosphor bronze and a tin contact finish. The header is surface mount (SMD) with solder termination and a push-pull fastening type.
The insulator is molded from Liquid Crystal Polymer (LCP) in natural color, with a flammability rating of UL94 V-0. The header includes a keying slot for polarization and is fully shrouded with a 4-wall design. It is rated for 3.4A per contact and operates over a temperature range of -55°C to 125°C.
Packaged in Tape & Reel with 175 parts per package, this component is suitable for automated assembly processes. The contact length is 6.35mm and the insulation height is 8.89mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.60 | $3.60 |
| 50+ | $2.93 | $2.93 |
| 100+ | $2.50 | $2.50 |
| 175+ | $2.50 | $2.50 |
| 350+ | $2.45 | $2.45 |
| 875+ | $2.28 | $2.28 |
| 1,925+ | $2.23 | $2.23 |
| 4,900+ | $2.12 | $2.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 10 positions in 2 rows, all positions loaded.
The current rating is 3.4A per contact.
It is surface mount (SMD) with solder termination.
The operating temperature range is -55°C to 125°C.
RoHS3 compliant per manufacturer, though unverified.
Tape & Reel packaging with 175 parts per package.
