HTST-105-01-G-D Samtec HTST-105-01-G-D is a 10 position, 2 row, 2.54mm pitch through hole shrouded header with gold plated contacts. It features a natural LCP insulator and keying slot.
Mfr Part #:

HTST-105-01-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec HTST-105-01-G-D is a 10 position, 2 row, 2.54mm pitch through hole shrouded header with gold plated contacts. It features a natural LCP insulator and keying slot.
✓ Total Stock: 252 pcs
$ Price Range: $1.74 - $3.11

HTST-105-01-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
252 pcs
On Request
252 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTST-105-01-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

HTST-105-01-G-D Description

Short technical summary and product information.

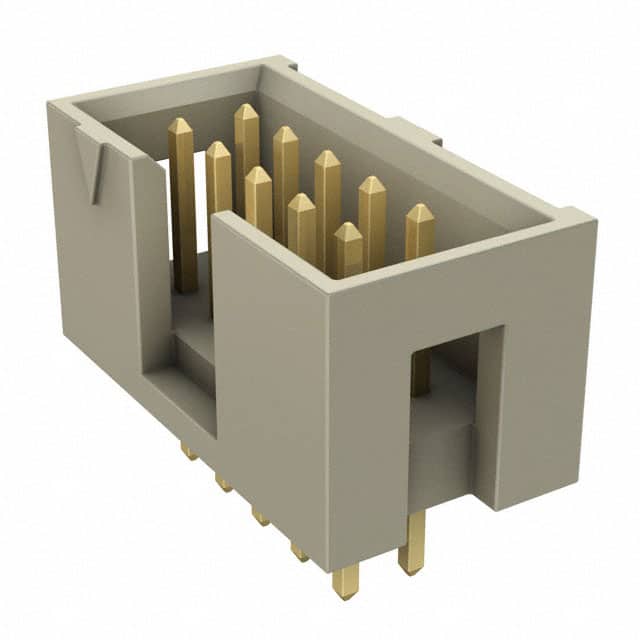

The Samtec HTST-105-01-G-D is a .100" (2.54mm) pitch shrouded header from the HTST series. It has 10 positions arranged in 2 rows, with male square pins made of phosphor bronze and gold plating (10µin). The insulator is natural Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. This through-hole header is designed for board-to-cable/wire applications and mates with Samtec IDSD and HCSD IDC socket assemblies.



The header features a 4-wall shrouded design with a push-pull fastening mechanism and a keying slot for polarization. It is rated for 3.4A per contact and 425 VAC/600 VDC. The operating temperature range is -55°C to +125°C. The contact length is 6.35mm with an overall contact length of 12.19mm. The insulation height is 8.89mm.



This component is lead-free solderable and RoHS3 compliant. It is packaged in bulk. The HTST series is suitable for high-temperature processing and offers reliable performance in various interconnect applications.

HTST-105-01-G-D Quick Information

Product Type: Header, Male Pins
Series: HTST
Canonical Name: Samtec HTST-105-01-G-D .100" (2.54mm) Pitch Shrouded Header, 10 Positions, 2 Rows, Through Hole, Gold
Subcategory: Shrouded Header

HTST-105-01-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HTST-105-01-G-D Estimated Pricing

Qty Low High
1+ $3.11 $3.11
100+ $2.66 $2.66
500+ $2.52 $2.52
1,000+ $2.03 $2.03
2,000+ $1.94 $1.94
5,000+ $1.74 $1.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTST-105-01-G-D Features

  • 10 positions in 2 rows at 2.54mm pitch.
  • Gold plated phosphor bronze contacts.
  • Shrouded 4-wall design with keying slot.
  • Through hole mounting with solder termination.
  • Rated for 3.4A per contact and 425VAC/600VDC.

HTST-105-01-G-D Applications

  • Board-to-cable wire interconnect applications.
  • Mates with Samtec IDSD and HCSD IDC sockets.
  • Suitable for high-temperature processing environments.
  • Used in industrial and commercial electronic systems.

HTST-105-01-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions in 2 rows.

What is the pitch?

2.54mm (0.100").

What is the current rating?

3.4A per contact.

What is the voltage rating?

425 VAC / 600 VDC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material and finish?

Phosphor bronze with gold plating (10µin).
