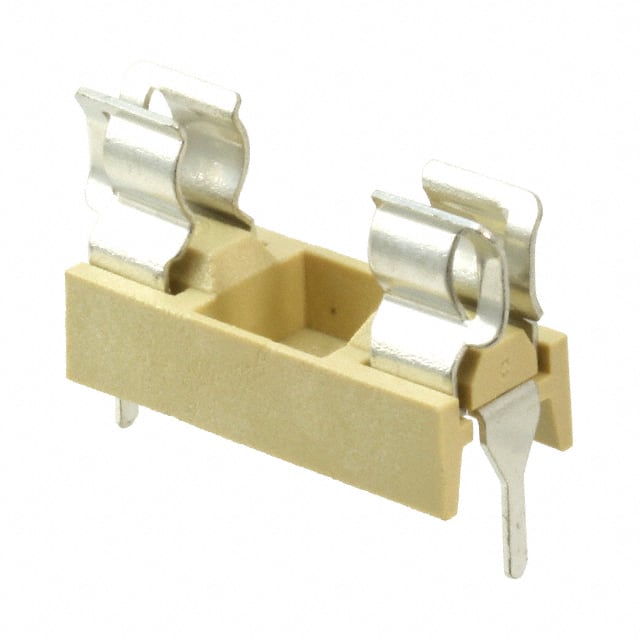

HTC-15M Eaton HTC-15M is a through-hole cartridge fuse block rated 6.3A at 250V, accepting 5mm x 20mm fuses with PC pin termination.
Mfr Part #:

HTC-15M

Available from 2 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Eaton HTC-15M is a through-hole cartridge fuse block rated 6.3A at 250V, accepting 5mm x 20mm fuses with PC pin termination.
✓ Total Stock: 50 pcs
$ Price Range: $3.79 - $4.57

HTC-15M Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HTC-15M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Lead Style
Mounting Type
Number of Circuits
Orientation
Tape & Reel
Termination Style
Voltage
View Similar Products (0)

HTC-15M Description

Short technical summary and product information.

The Eaton HTC-15M is a single-circuit cartridge fuse block designed for through-hole PCB mounting. It accepts standard 5mm x 20mm cartridge fuses and is rated for 6.3A at 250V. The horizontal orientation allows for low-profile installation on printed circuit boards.



Termination is via PC pins, and the contacts are made of tin-plated brass for reliable electrical connection. This fuse block is suitable for overcurrent protection in a variety of electronic equipment where a 5x20mm fuse form factor is required.



The HTC-15M is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is a direct replacement for many industry-standard 5x20mm fuse blocks.

HTC-15M Quick Information

Product Type: Fuseholder
Canonical Name: Eaton HTC-15M Cartridge Fuse Block
Subcategory: Cartridge Fuseholder

HTC-15M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HTC-15M Estimated Pricing

Qty Low High
1+ $4.57 $4.57
5+ $3.79 $3.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTC-15M Features

  • Rated for 6.3A at 250V operation.
  • Accepts 5mm x 20mm cartridge fuses.
  • Through-hole PC pin termination style.
  • Horizontal mounting orientation on PCB.
  • Tin-plated brass contact material.

HTC-15M Applications

  • Overcurrent protection in power supplies.
  • Fuse holder for industrial control panels.
  • Used in consumer electronics PCB assemblies.
  • Suitable for lighting and appliance circuits.

HTC-15M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the HTC-15M?

6.3 A.

What is the voltage rating of the HTC-15M?

250 V.

What fuse size does the HTC-15M accept?

5mm x 20mm cartridge fuses.

What is the mounting type of the HTC-15M?

Through hole.

What is the termination style of the HTC-15M?

PC pin.

What is the orientation of the HTC-15M?

Horizontal.

What is the contact material of the HTC-15M?

Brass with tin finish.
