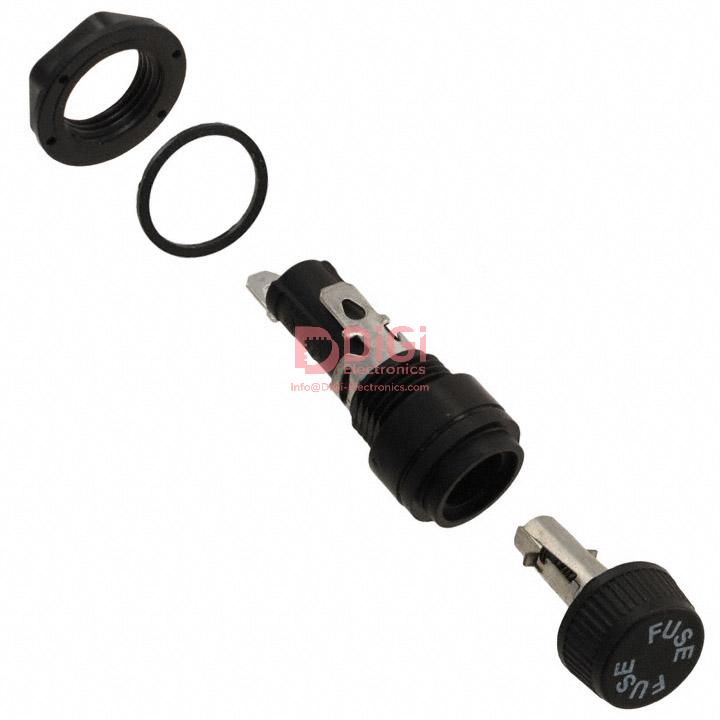

HTB The Eaton BK/HTB-42M-R is a panel mount fuse holder designed for 5mm x 20mm cartridge fuses. It features a 250V voltage rating and a 16A current rating.

Mfr Part #:

HTB

The Eaton BK/HTB-42M-R is a panel mount fuse holder designed for 5mm x 20mm cartridge fuses. It features a 250V voltage rating and a 16A current rating.

✓ Total Stock: 600 pcs

$ Price Range: $0.99

HTB Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	600 pcs On Request	600 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

HTB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Eaton - Electronics Division
Current Rating	16A
Fuse Size	5mm x 20mm
Mounting Type	Panel Mount
Number of Circuits	1
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating	250V

View Similar Products (0)

HTB Description

Short technical summary and product information.

This Eaton BK/HTB-42M-R fuse holder is part of the HTB series and is designed for panel mounting. It accommodates 5mm x 20mm cartridge fuses, providing a reliable solution for circuit protection.

The fuse holder has a maximum voltage rating of 250V and a current rating of 16A. It is constructed for durability and ease of use in various applications. The termination style is quick connect, facilitating efficient installation.

Key specifications include a single circuit design and a bulk packaging format. This component is suitable for applications requiring secure and accessible fuse replacement.

HTB Quick Information

Product Type: Fuse Holder

Series: HTB

Canonical Name: Eaton BK/HTB-42M-R Fuse Holder

Subcategory: Fuse Holder

HTB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HTB Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

HTB Features

Rated for 250V and 16A.
Accepts 5mm x 20mm fuses.
Panel mount design.
Quick connect 0.187" terminals.
Single circuit holder.

HTB Applications

Overcurrent protection in industrial control panels.
Panel mount fusing for power supply units.
Protection for lighting and appliance circuits.
Suitable for 5x20mm cartridge fuse applications.

HTB FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the HTB fuse holder?

16A.

What is the voltage rating?

250V.

What packaging is available?

Bulk.

What fuse size does the HTB holder accept?

5mm x 20mm cartridge fuses.

What is the mounting type?

Panel mount.

What is the termination style?

Quick connect - 0.187" (4.7mm).

How many circuits does it support?

1 circuit.
