| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (-12V) | |
| Output Voltage (-12V) | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

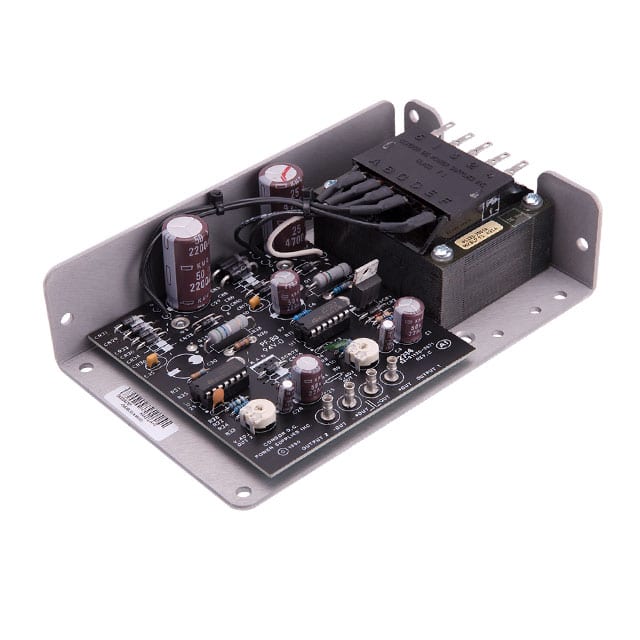

The HTAA-16W-A+G is a linear AC/DC converter from SL Power Electronics, part of the HTAA series. It provides three regulated outputs: 5V, +12V, and -12V, with a total power of 20W. The converter features adjustable output and universal input. Overvoltage protection is built-in on the 5V output set at 6.2V ±0.4V. The unit accepts a wide AC input range (100-240 VAC, 47-63 Hz) and offers excellent line and load regulation (±0.05%) with low output ripple (3 mV +0.05% of output voltage p-p max). Transient response is less than 50 µs for a 50% load change.
The chassis mount package measures 165.1mm x 101.6mm x 45.7mm. Operating temperature range is 0°C to 70°C with derating. Safety approvals include EN/CSA/IEC/UL62368-1 and it meets FCC and CISPR22 Class B conducted emissions. MTBF exceeds 200,000 hours per MIL-HDBK-217D. This converter is suitable for ITE (commercial) applications requiring low noise linear power.
100-240 VAC, 47-63 Hz with specific tolerances: 100/120/240 Vac +10% -13%; 215 Vac +12% -11%; 230 Vac +15% -10%.
Chassis mount.
0°C to 70°C with derating.
Yes, the G suffix indicates RoHS3 compliance.
5V, +12V, and -12V.
20W.
EN/CSA/IEC/UL62368-1, CE, cURus, TUV.
