| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Length | |
| Memory Type | |
| Operating Temperature | |
| Standards | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Technology | |
| Width | |
| Writable Memory |

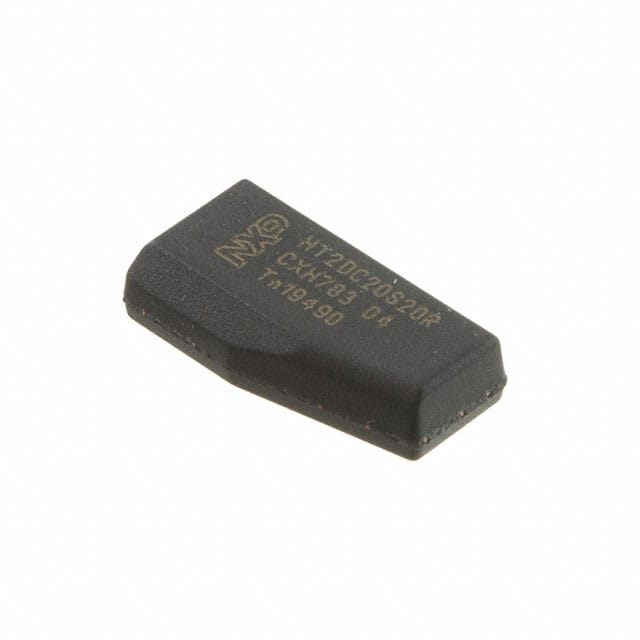

The NXP Semiconductors HT2DC20S20/F/RSP is a highly integrated HITAG 2 based transponder IC designed for contactless applications. It operates at a frequency of 125 kHz and requires no external components for data transmission and energy supply via an RF link.
This transponder IC offers 256 bits of non-volatile memory, organized into 8 pages of 4 bytes each, with 128 bits for user data and 128 bits for control data/secret memory. It supports read/write operations with options for plain or encrypted data transmission and features selective read/write protection for memory content. The device is capable of 100,000 erase/write cycles and provides 10 years of non-volatile data retention.
With a compact encapsulated style and dimensions of 11.90mm x 5.90mm, the HT2DC20S20/F/RSP is suitable for various tracking and identification applications. It operates within a temperature range of -40°C to 85°C and adheres to ISO 11784 and ISO 11785 standards, making it ideal for animal identification and logistics tracking.
Key features include bidirectional data transmission in half duplex mode, mutual authentication, and emulation of standard industrial read-only transponders. The device supports Biphase and Manchester coding schemes for read operations, ensuring effective communication with outstanding data integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 125kHz.
It has 256 bits of writable memory.
The non-volatile data retention is 10 years.
The device supports 100,000 erase/write cycles.
The operating temperature range is -40°C to 85°C.
It complies with ISO 11784 and ISO 11785 standards.
