| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,261 pcs
|
3261 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Driven Configuration | |
| Gate Type | |
| High Side Voltage | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Rise | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage |
The Microchip Technology HT0440K6-G is a dual, high voltage, isolated MOSFET driver designed for applications requiring robust isolation. Utilizing HVCMOS technology, it can drive N-channel MOSFETs configured as high-side switches up to 400V.
Key electrical specifications include ±400V input to output isolation and ±700V isolation between outputs. The device operates with logic input voltages between 0.5V and 7.0V and a supply voltage range of 3.15V to 5.5V. It supports an external clock frequency of 0.5 to 2.0 MHz.
This driver is suitable for telecommunications, modems, solid-state relays, and high-end audio switches. It features an operating temperature range of -40°C to 125°C (TJ) and is available in a 10-DFN (3x4) surface mount package.
The HT0440K6-G does not require an external voltage supply, as the internal supply voltage is derived from the logic inputs when they are at logic high. The internal clock can be disabled by applying an external clock signal to the CLK pin.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The junction temperature range is -40°C to +125°C.

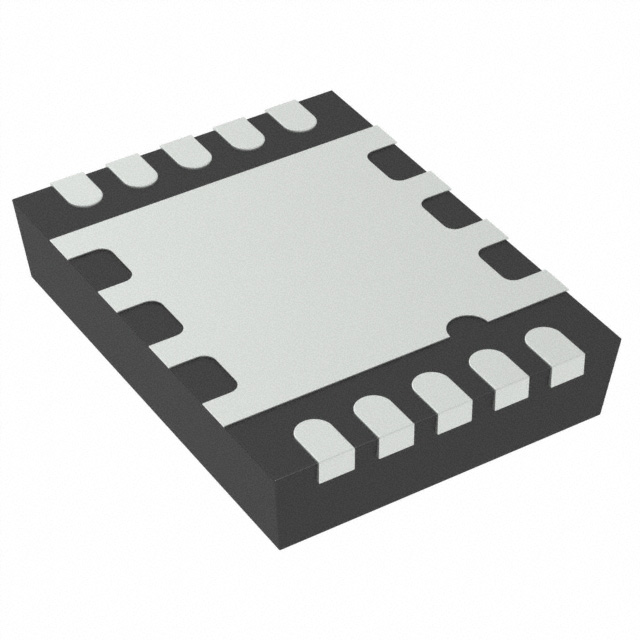

The device is available in a 10-DFN (3x4) and 10-VFDFN Exposed Pad surface-mount package.
The supply voltage range is 3.15V to 5.5V.
The HT0440K6-G contains 2 drivers.
The input-to-output isolation voltage is ±400V.
Logic input high voltage is 3.15V to 5.5V; logic input low voltage is 0V to 0.5V.
Yes, it supports an external clock frequency of 0.5 to 2.0 MHz.
