| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,000 pcs
|
36000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

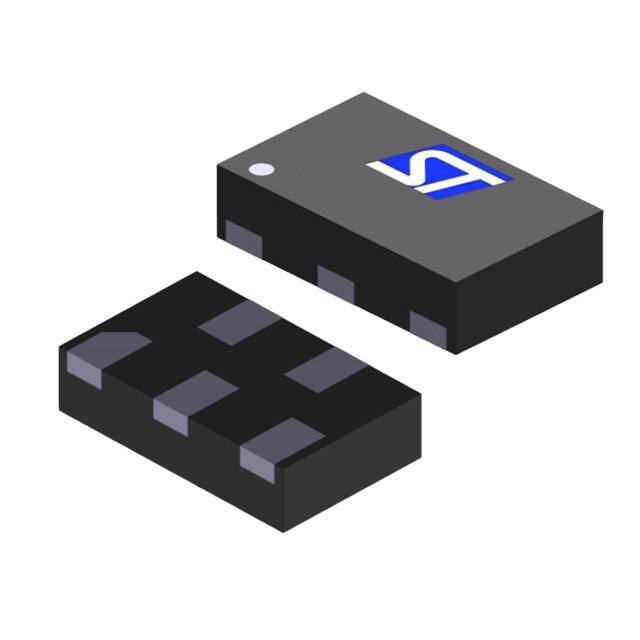

The HSP051-4M5 is a steering (rail-to-rail) transient voltage suppression (TVS) diode designed for ESD protection on high-speed digital interfaces. It integrates four channels in a compact 5-XFDFN (5-µQFN) surface-mount package.
Key electrical characteristics include a reverse standoff voltage of 5V, a clamping voltage of 11.3V, and a peak pulse current rating of 3A (8/20µs waveform). The device features an ultra-low typical capacitance of 0.6pF across 200MHz to 2.5GHz, ensuring minimal signal integrity impact on high-speed differential pairs.
This TVS diode is well-suited for protecting HDMI and USB ports in consumer electronics, portable devices, and communications equipment. It supports power line protection and operates over a wide temperature range from -40°C to +150°C, making it robust for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.22 | $0.22 |
| 100+ | $0.15 | $0.15 |
| 500+ | $0.12 | $0.12 |
| 1,000+ | $0.10 | $0.10 |
| 2,500+ | $0.08 | $0.08 |
| 6,000+ | $0.08 | $0.08 |
| 12,000+ | $0.06 | $0.06 |
| 24,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 5V.
The clamping voltage is 11.3V.
The peak pulse current is 3A (8/20µs waveform).
It is available in a 5-XFDFN package (5-µQFN, 1.3x0.8mm).
It has 4 channels.
The typical capacitance is 0.6pF (measured at 200MHz to 2.5GHz).
It is designed for HDMI and USB interfaces.
