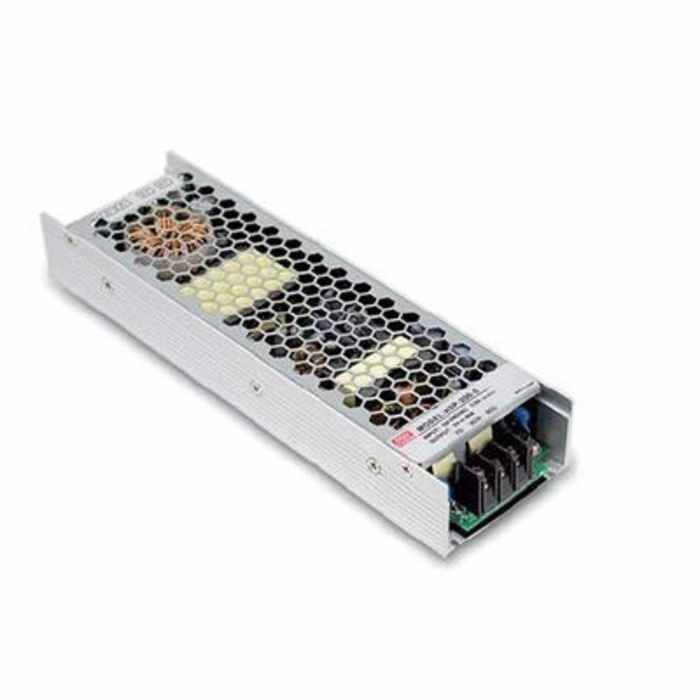

The Mean Well HSP-200-4.2 is a single-output, enclosed AC-DC switching power supply designed for industrial applications. It delivers a stable 4.2V output at a maximum current of 40A, providing a total power of 168W. This power supply features adjustable output, Power Factor Correction (PFC), and universal input voltage range from 127V to 370V dc.
With an efficiency of 88%, the HSP-200-4.2 operates reliably within a wide temperature range of -40°C to 85°C. Its dimensions are 210.0mm in length, 62.0mm in width, and 31.0mm in height, making it suitable for chassis mounting. The unit is conformal coated for enhanced protection.
Key specifications include a 3kV voltage rating and applications in ITE (Commercial) equipment. It holds approvals from CB, CCC, CE, cURus, and TUV. The RoHS status is compliant, and it has an MSL of 1.
4.2V DC.
40A.
168W.
127 to 370 VDC.
The converter can operate from -40°C to 85°C (with derating, -30°C to 70°C).
88%.
Chassis mount.
