| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Factory Pack Quantity | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| Height (Max) | |
| LED Size | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity | |
| Maximum Operating Temperature | |
| Millicandela Rating | |
| Minimum Operating Temperature | |
| Mounting Style | |
| Mounting Type | |
| Power Rating | |
| Reverse Voltage | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

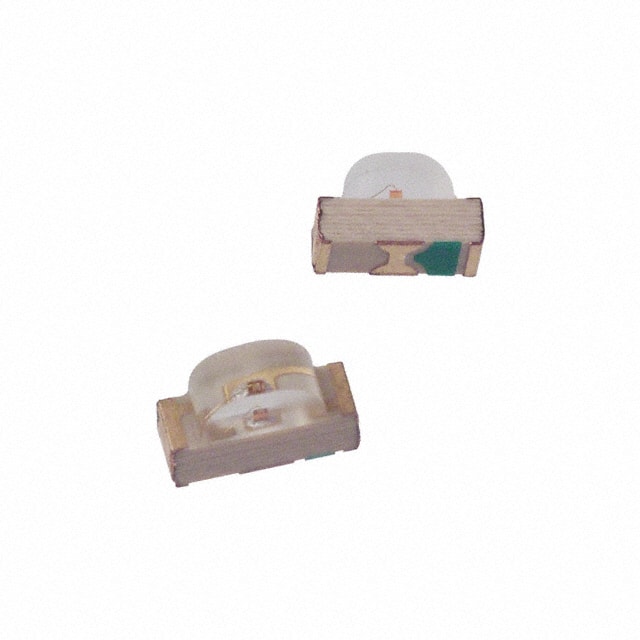

The Broadcom HSMS-C680 is a discrete standard LED designed for surface-mount applications. This component features red illumination with a peak wavelength of 636nm and a luminous intensity of 5.1mcd. It operates with a typical forward voltage of 2V and a forward current of 20mA, making it suitable for various indicator applications.
The LED is housed in a compact 3mm x 2mm x 1mm SMD package, specifically a SIDE LOOKER type, with a Surface Mount, Right Angle mounting style. Its lens is colorless and clear, with a domed top, providing a wide viewing angle of 125°. The operating temperature range is from -40°C to +85°C.
This component is supplied on a reel and is suitable for automated assembly processes. Its specifications make it a reliable choice for general-purpose indicator lighting where a red LED is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the HSMS-C680 LED is 2V.
The typical forward current for the HSMS-C680 LED is 20mA.
The typical luminous intensity for the HSMS-C680 LED is 5.1mcd.
The typical viewing angle for the HSMS-C680 LED is 125°.
The HSMS-C680 LED has a minimum operating temperature of -40°C and a maximum operating temperature of +85°C.
The HSMS-C680 LED has a package size of 3mm x 2mm x 1mm.
